Types of Filling Heads in Blow-Fill-Cap Lines

Views: 94 Author: Site Editor Publish Time: Origin: Site

In the fast-paced and highly competitive beverage packaging industry, efficiency, accuracy, and hygiene are paramount. Blow-Fill-Cap lines have become a popular solution for manufacturers, particularly in the beverage industries, to streamline the bottling process. These automated systems integrate three essential processes—blowing, filling, and capping—into one unified operation. The heart of these systems lies in the filling heads, which play a crucial role in ensuring that products are dispensed accurately and efficiently into containers. This article explores the different types of filling heads used in Blowing-Filling-Capping lines and their respective advantages and limitations.




What is a Blow-Fill-Cap Line?

A Blow-Fill-Cap line, also called blowing-filling-capping combiblock or combiblock line, is a highly efficient system that integrates the process of forming plastic bottles, filling them with liquid, and capping them—all in a continuous, automated cycle. The process begins with the blowing of pre-formed plastic into bottles, followed by filling with the desired liquid, and finished with capping the bottle. This integrated system eliminates the need for separate machines for each step, reducing the risk of contamination, increasing speed, and optimizing hygiene, which is especially critical for food and beverage products.

The blowing-filling-capping line’s efficiency, speed, and hygienic design make it a preferred choice for many industries, from bottled beverages to health and beauty products. Central to the blow-fill-cap system’s operation is the filling head, which ensures that liquid is dispensed accurately into each bottle, meeting both regulatory requirements and consumer expectations.

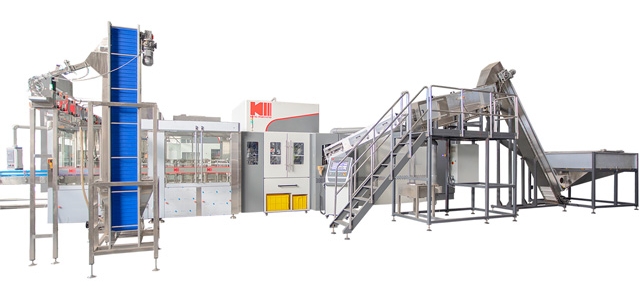

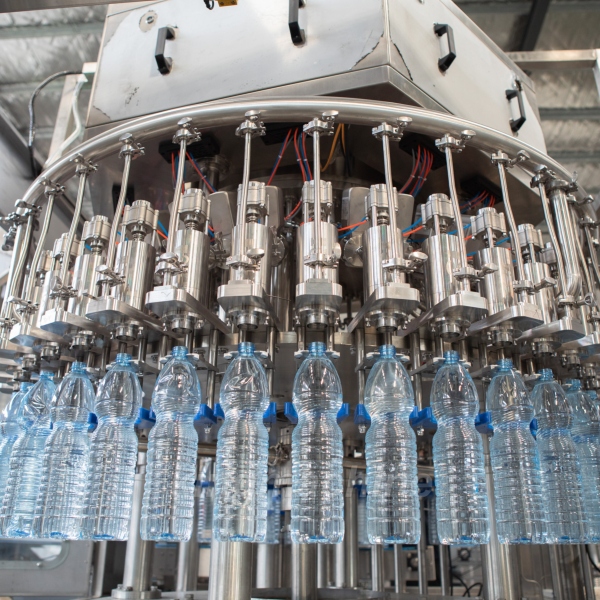

 beverage filling line.jpg


Types of Filling Heads in Blow-Fill-Cap Lines

There are several types of filling heads used in Blow-Fill-Cap lines, each with its distinct features and applications. The choice of filling head largely depends on the viscosity of the product, its stability, and the desired production speed.



1. Flow Meter Filling Heads

Flow meter filling heads measure the liquid’s flow rate as it passes through a pipe, ensuring that the correct amount is dispensed into each bottle. This technology uses sensors and flow meters to determine the volume of liquid dispensed, offering high accuracy.

Advantages:

High speed and accuracy make it ideal for high-volume production of liquids with stable flow properties, such as milk, juices, and other beverages.

Minimal product waste due to precise filling.

Can be easily adjusted for different product types and bottle sizes.

Limitations:

The initial cost can be higher due to the sophisticated technology involved.

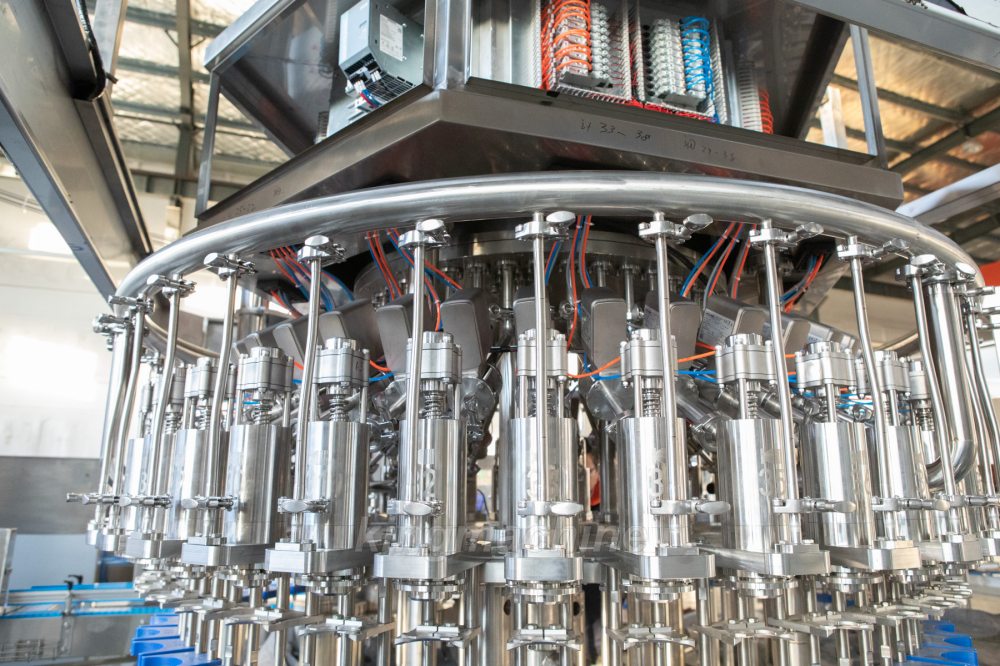

 flowmeter filling head.jpg


2. Positive Displacement Filling Heads

Positive displacement filling heads use a mechanical system (often a piston or diaphragm) to displace a specific volume of liquid and then fill the bottle. This type of filling system ensures that each bottle receives the exact volume of liquid, regardless of the product's viscosity.

Advantages:

Excellent for filling thicker liquids such as sauces, creams, or pastes, as well as products containing particulates.

Provides a high level of precision and consistency, ensuring each bottle contains the correct volume.

Suitable for a wide range of products with varying viscosities.

Limitations:

More complex and expensive than gravity filling systems due to the mechanical components involved.

Requires more maintenance and is slower compared to gravity filling heads in terms of production speed.



3. Gravity Filling Heads

Gravity filling heads are among the simplest and most commonly used filling technologies in the beverage industry. These heads work by utilizing the force of gravity to move the liquid from the reservoir into the bottles. The liquid flows freely into the bottles through nozzles, filling each one to the required level.

Advantages:

Simple, cost-effective design with fewer moving parts, making it easy to maintain and operate.

Suitable for low-viscosity liquids like water, juice, and soft drinks.

Fast and efficient for high-volume production.

Limitations:

Not ideal for high-viscosity or foamy liquids, as gravity alone cannot provide the level of control needed for consistent filling.

Can result in spillage or inaccurate filling if the system isn’t calibrated correctly.



4. Piston Filling Heads

Piston filling heads operate by using a piston mechanism to draw liquid into a chamber and then push it into the bottle, providing a highly controlled and accurate filling process. This system is particularly useful for filling semi-viscous and thicker liquids.

Advantages:

Ideal for a wide range of products, including semi-viscous liquids like oils, syrups, and creams.

Offers precise filling and can be easily adjusted for different volumes and bottle sizes.

More consistent than gravity filling heads, particularly for thicker products.

Limitations:

Slower compared to flow meter or gravity filling heads, making it less suitable for very high-speed production lines.

More complex than gravity filling heads, which can result in higher maintenance costs.



5. Vacuum Filling Heads

Vacuum filling heads use a vacuum pump to create a vacuum in the bottle, causing the liquid to be drawn into the container. This system is particularly advantageous for carbonated beverages or foamy liquids, as it reduces foaming during the filling process.

Advantages:

Excellent for carbonated beverages like sodas and beers, as it helps preserve carbonation and minimizes foaming.

Offers high-speed filling and prevents spillage or overflow.

Helps maintain the integrity of the product by reducing air exposure and minimizing contamination.

Limitations:

Requires more maintenance due to the complex nature of the vacuum system.

More expensive and can be less efficient for non-carbonated or low-foam products.



Choosing the Right Filling Head for Different Products

The type of filling head selected for a Blow-Fill-Cap line depends on several factors, including:

Viscosity: Thicker products require filling heads capable of handling dense liquids, such as positive displacement or piston filling heads.

Product Stability: For foamy or carbonated products, vacuum filling heads are often the best choice to prevent excessive foaming and preserve carbonation.

Production Speed: For high-speed bottling, gravity or flow meter filling heads are typically preferred for their rapid and accurate dispensing capabilities.

Hygiene: The level of cleanliness required in the product can influence the choice, with certain filling systems offering more hygienic or automated cleaning capabilities.



Conclusion

Blow-Fill-Cap lines are a critical part of the modern packaging process, and the choice of filling head is central to ensuring product quality, production efficiency, and cost-effectiveness. Whether you are filling low-viscosity liquids like water or thicker products such as sauces and creams, selecting the right type of filling head for your product is crucial. By understanding the advantages and limitations of gravity, positive displacement, flow meter, piston, and vacuum filling heads, manufacturers can optimize their operations and meet the demands of their customers with precision and speed. As technology continues to advance, the future of filling heads in Blow-Fill-Cap lines promises even greater efficiency, accuracy, and sustainability in packaging operations.


×
