Updated Technology on Liquid Filling Machine Chapter 1

Views: 1781 Author: Site Editor Publish Time: 2017-12-02 Origin: Site

With the development of the technology, the filling machine technology is changing and advanced too, let's see more changes and breakthrough follow below:

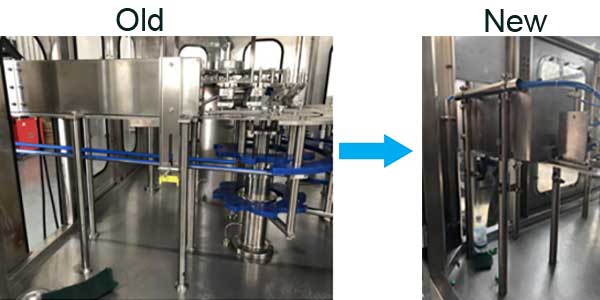

1,The height of the air conveyor can be adjust now, it’s more easier to change bottle spare parts.

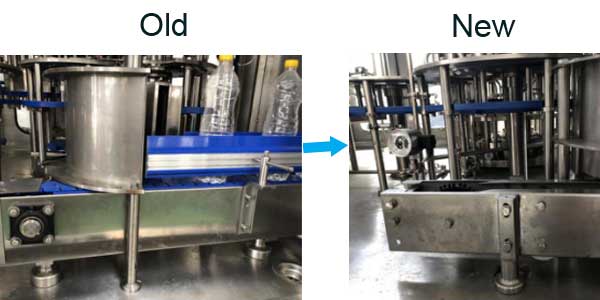

2, The height of the bottle conveyor can be adjust now, it’s more easier to change bottle spare parts.

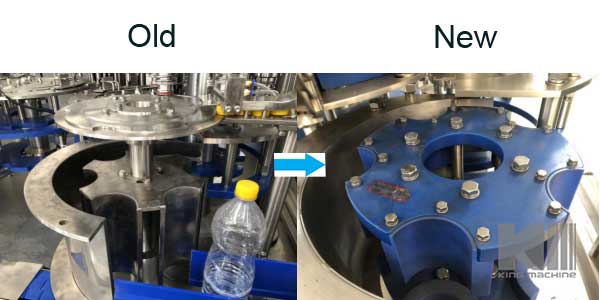

3,The new bottle output star wheel can be changed easily now.

4, For glass bottle filling machine and jatex filling machine(such as ketchup) there equipped a lubricating system to lubricate the bearings and wheels so that the machine works more stable and prolong the life-span of the machine spare parts.

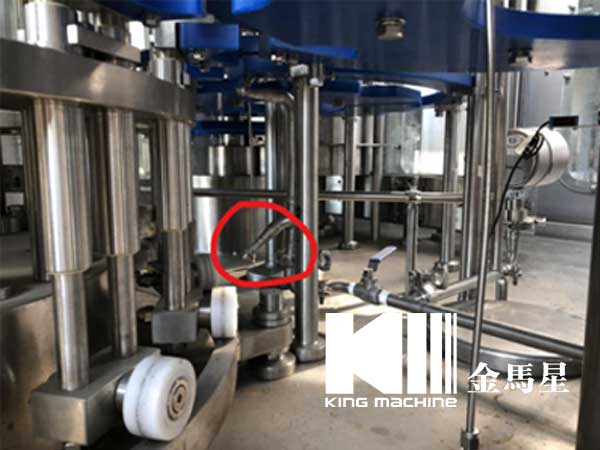

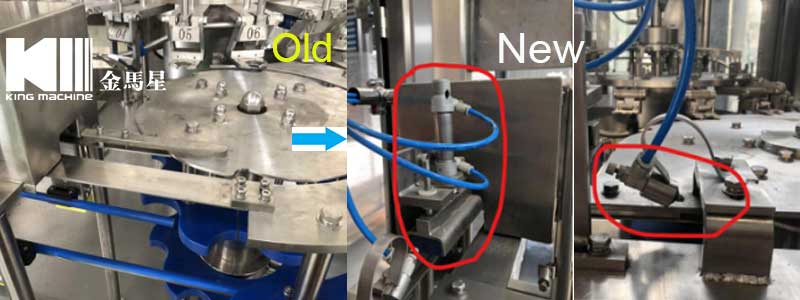

5, New type filling machine equipped with a blocking device connect with air cylinder , when the machine need maintance, the block will stop the bottle so that the bottle will not go into the machine star wheel to prevent the bottle neck from damage. Also add an air jet nozzle when the bottle is too much and blocked,no need manually move the bottle,the air will move the bottles to proper position.
