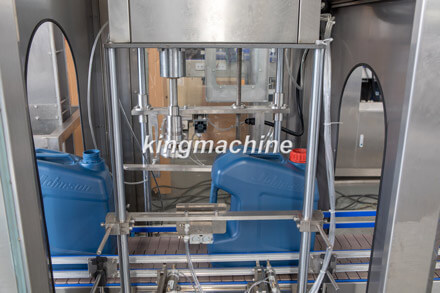

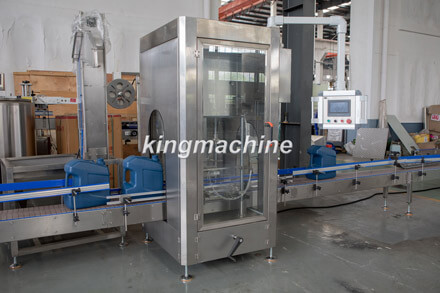

Full-automatic Single Head Capping Machine < Servo >
Type: FX-1
2.1 This is Linear Capping machine running with conveyor automatically.
2.2 This filling machine is a high-tech filling equipment controlled by
microcomputer PLC programmable, equip with photo electricity transduction and pneumatic action.
2.3 Accurate measurement: adopt servo control system
2.4 Bottles will be fixed by two cylinders and it can automatically arrange lid, taking lid and sending lid, it will grasp lid then capping under control of double-acting cylinder lifting stroke.
2.5 The machine grasp lids through pneumatic type, lid-revolving head has a clutch to ensure the tightened lid not to damage.
1.6 It suits for capping of 1-5kg bottle plastic caps.
No. | Item | Technical Data |
1 | Capacity | ≤1200 Bottles/hour |
2 | Suitable Bottle Diameter | ≤320(L)*220(W)mm |
3 | Suitable Bottle Height | 250-450mm |
4 | Air Pressure | 0.6-0.8Mpa |
5 | Power | 3KW |
6 | Voltage | 3 Phase 380V 50HZ |
7 | Weight | 800KG |
8 | Dimension | 1200*1300*2000MM |
Single Head Capping Machine | For 20L bottle |
6.Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
We control the quality of our equipments by manufacturing and machining ourselves. Pay attention to each assembly detail, and our experienced technicians monitor each key point efficiently during assembly, to ensure that the performance and appearance of each product be pefect.
