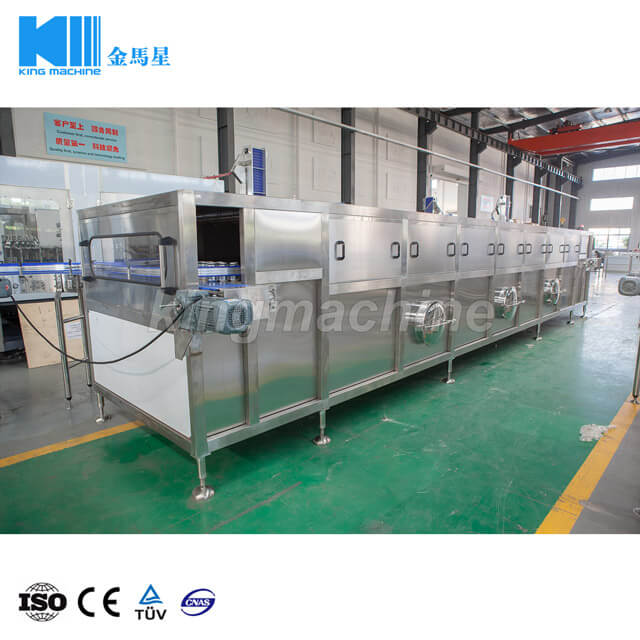

Tunnel Pasteurizer / Bottle Warmer / Bottle Warming Tunnel

Tunnel Pasteurizer / Bottle Warmer / Bottle Warming Tunnel

1. capacity ：250ml PET bottle ：8000 Bottles/h
2. set temperature and cooling treatment time ：total treatment time ：35minutes
3. applicable bottle size ： diameter 50－110， height ：H300mm
4. effective treatment area：10.54m2
5. electricity power consumption ：13.25kw
among this ： main motor 0.75kw
6. water cooling consumption
①water starting consumption ： 15t
②water running consumption ： 30－42kg/H
③the cooling capacity of the cooling column: 60m3/h,(the cooling column should be supplied by the user).
7. Overall size
LWH＝1000010001670
WORKIGN HEIGHT ：H＝1250mm
8.weight： 3.6t

Quantity:

Share this:

Model: KM
Brand: KM
Code: 8422

Product Description
Videos
Company Information
Our Customer
FAQ

Profile:

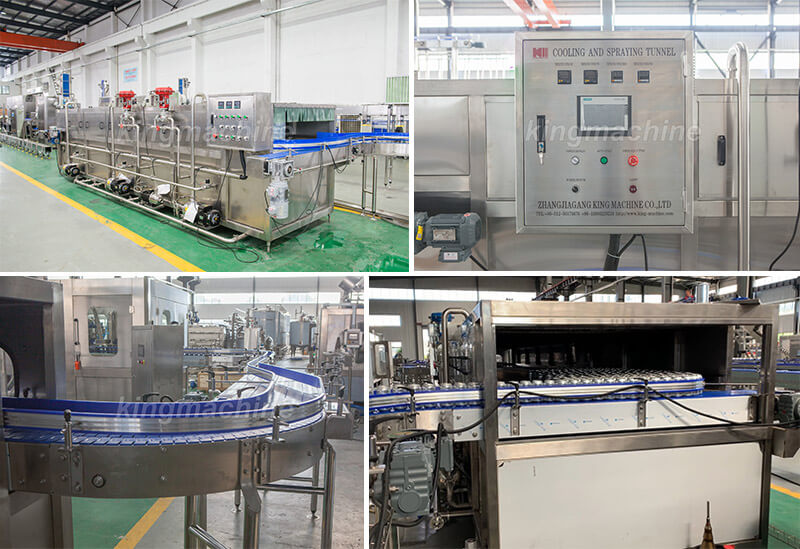

WP type spraying cooling machine are developed on base of absorbing advanced technique from home and abroad. With three zones treatment of circulated cooling water and the treatment time can be adjusted according to the user’s requirement. The machine can applicable to all types non-carbonated material such as tea, juice, sauce. The machine body is made of SUS304 stainless steel and can run stably and smoothly.
Feature:

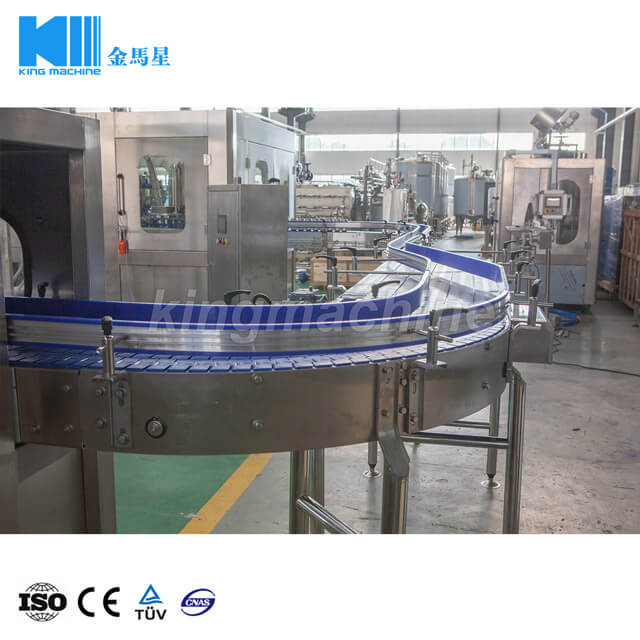

1． High reliability conveying device and flexibility speeding system
The conveying belt for bottles is high strength plastic chain net which has god strength and abrasion proof.The driving conveying adopts stepless motor which can change the speed of conveying belt easily.
2． high effective spraying system
Via arranging the atomization nozzles on the chain plate in order to spray the bottles evenly, the spraying water can be utilized completely and the spraying covers large area

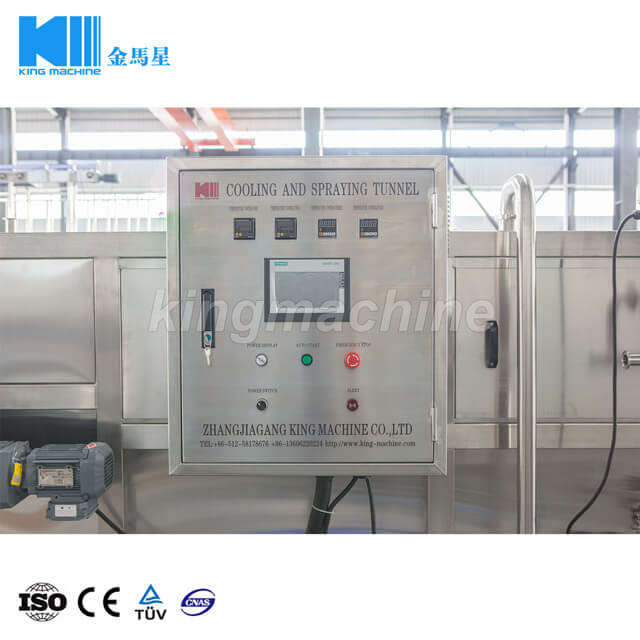

3．The temperature can be controlled flexibly and easily set
The machine adopts temperature controlling system which can control the temperature exactly and be sensitive to the response. Press the button to set temperature between 0-100℃

Main technical parameters:
1. capacity ：250ml PET bottle ：8000 Bottles/h
2. set temperature and cooling treatment time ：total treatment time ：35minutes
3. applicable bottle size ： diameter 50－110， height ：H300mm
4. effective treatment area：10.54m2
5. electricity power consumption ：13.25kw
among this ： main motor    0.75kw
6. water cooling consumption
①water starting consumption ：   15t
②water running consumption ：   30－42kg/H
③the cooling capacity of the cooling column: 60m3/h,(the cooling column should be supplied by the user).
7. Overall size
LWH＝1000010001670
WORKIGN HEIGHT ：H＝1250mm
8.weight： 3.6t

1.Standardized workshop of total 20,000 square meters.
2.Verification Certificates of equipments: ISO9001:2001; CE Certificate, SGS Certificate, BV Certificate, standard organisation of nigeria , cnca certificate, Logo trademark registration, etc.
3.The equipments will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
4.Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
5.The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.
6.Professional installation team who can speak fluent English can help customers make benefits in a shortest time.

We control the quality of our equipments by manufacturing and machining ourselves. Pay attention to each assembly detail, and our experienced technicians monitor each key point efficiently during assembly, to ensure that the performance and appearance of each product be pefect.

To help our customers build an ideal factory. With efficient cost control, we have found the right balance with our customers: diversified production range, high-class packaging forms. Meanwhile market competitivness has been improved because of the efficient operation mode of equipments.

Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine

Q2: Do you have agent and after-service stations?
A2: So far we have agent in Yemen,Nigeria,Dubai,India,Kenya,Dubai welcome to join us!

Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
