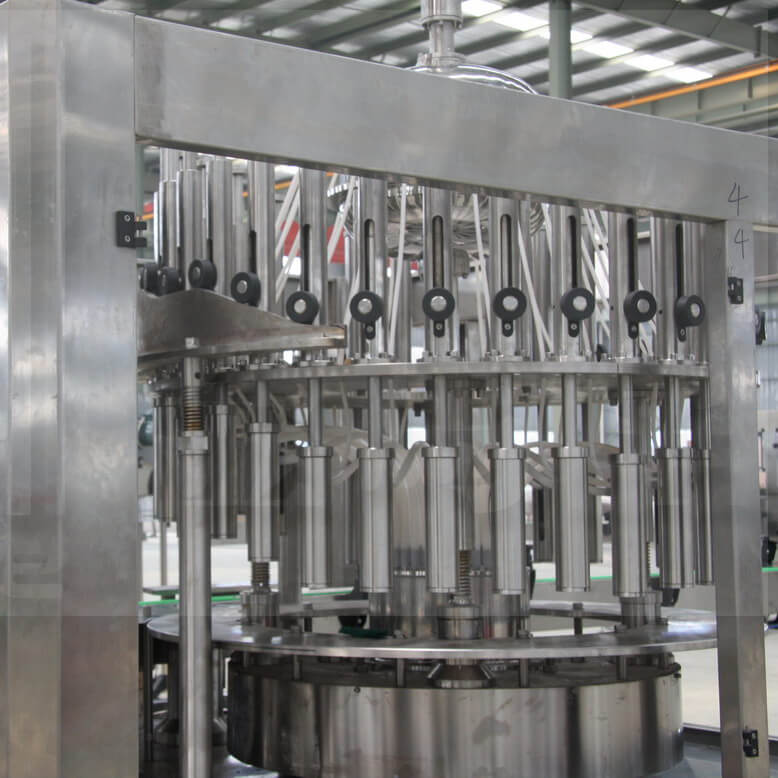

Wine Glass Bottle Vacuum Filling Machine Wine Glass Bottle Vacuum Filling Machine

Quantity:
Share this:
  • Model: BGF18-18-6
  • Brand: KM
  • Product Description



Model CGF18-18-6F CGF24-24-8F CGF32-32-10F
Name  washing filling capping three in one washing filling capping three in one washing filling capping three in one
Washing head 18heads 24heads 24heads
Filling head 18heads 24heads 24heads
Sealing head  6heads 8heads 8heads
Productivity 4000bph-6000bph 6000bph-8000bph 6000bph-8000bph
Motor power 4.4kw 5.2kw 6.2kw
Overall size 2800*2150*2300mm 3100*2300*2400mm 3880*2880*2500mm
Weight 4.5T 6.5T 7.5T
Applicable bottle size Glass bottle
ф50-92mm  Height:150~340mm Volume: 350~2000ml
Applicable cap ROPP or crown cap
Timing  type Transducer  Transducer  Transducer
Cap settling motor power 0.37Kw 0.37Kw 0.37Kw
Water pressure for washing >0.06Mpa<0.2Mpa >0.06Mpa<0.2Mpa >0.06Mpa<0.2Mpa
Washing time 2sec 2sec 2sec
Washing drop dryer time:3.4sec 3.4sec 3.4sec 3.4sec
Valve space between 104.72mm or customized
Pressure of washing 0.25-0.3Mpa
Filling temperature 0-4℃ or room temperature
Compress air wastage 20NM3/hour

Q:How about the spare parts?
A:We will send one year enough easy broken spare parts together with the machines,shipping together.During the warranty time,we will supply the spare parts with our cost including the delivery fees.

Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.

Q:How to install my machines when it arrives?how much the cost?
A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.

Q:When can I get my machine after I paid?
A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.

Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q:Are you a trading company or a manufacturer?
A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in raeasonable price, Welcome to visit us.




×
