20,000BPH Carbonated Soft Drink Filling Machine 20,000BPH Carbonated Soft Drink Filling Machine

DCGF50-50-15 washing,filling capping 3in1 machine is mainly used in the Equal pressure filling operations. The three functions of bottle rinsing, filling and capping are composed in one body of the machine. The whole process is automatic. The machine is used in filling carbonated beverage in bottles made of polyester and plastics.The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. . Therefore the output and benefit of the machine is higher than the machines of the same specifications.

Quantity:
Share this:
  • Model: DCGF 50-50-15
  • Brand: KM
  • Code: 8422301090
  • Product Description
  • Turnkey Project
  • Company Information
  • Our Customer
  • FAQ

Product Introduction:

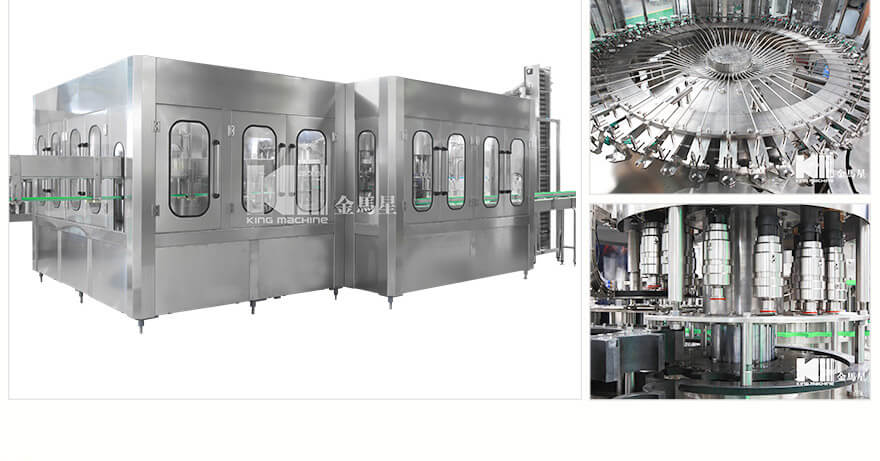

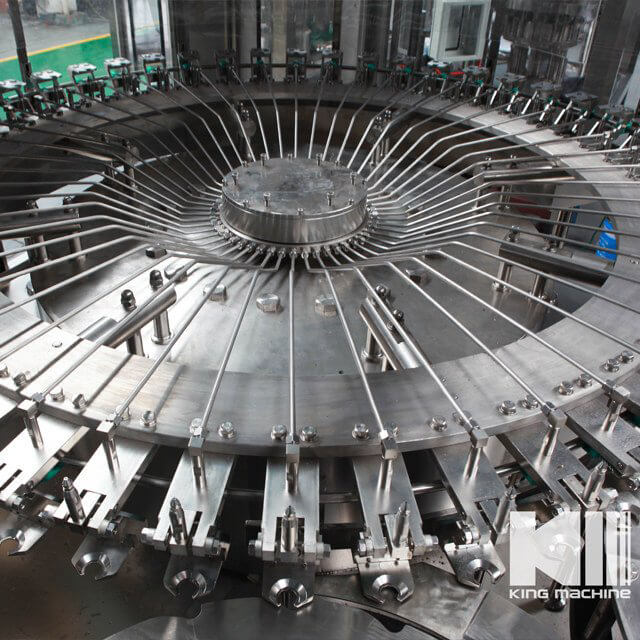

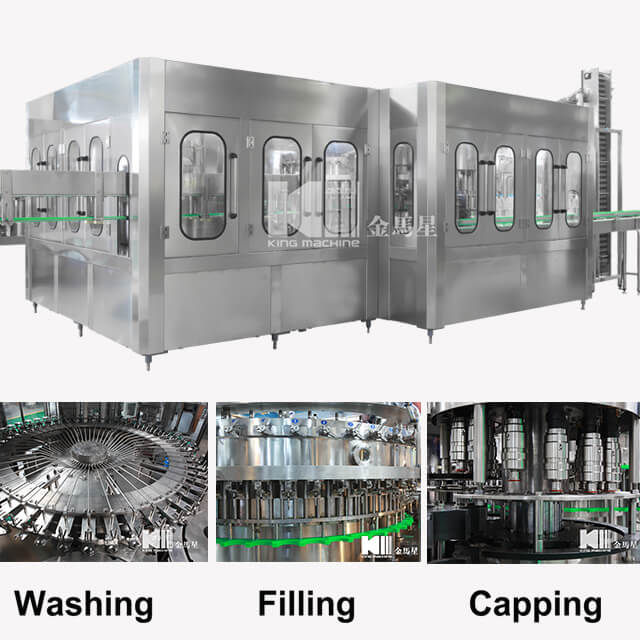

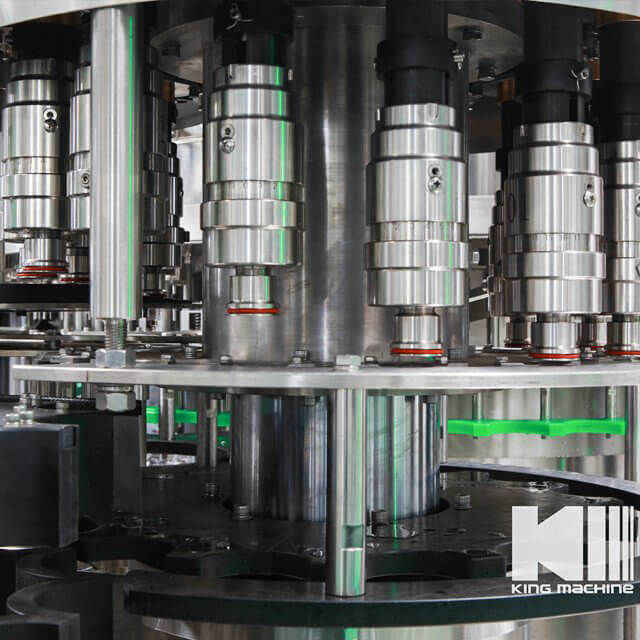

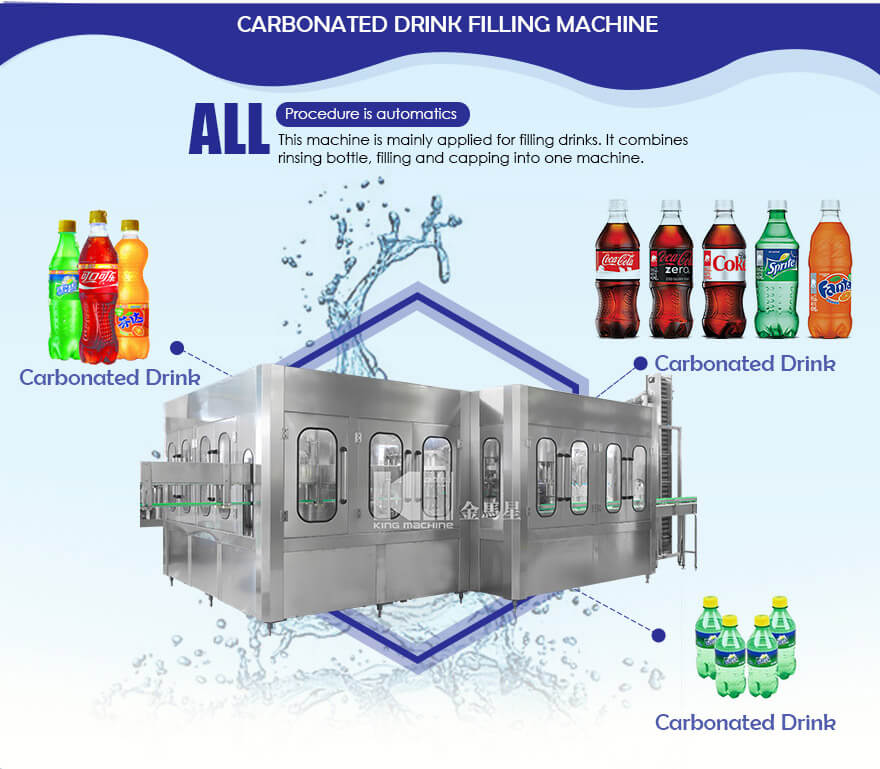

DCGF50-50-15 washing,filling capping 3in1 machine is mainly used in the Equal pressure filling operations. The three functions of bottle rinsing, filling and capping are composed in one body of the machine. The whole process is automatic. The machine is used in filling carbonated beverage in bottles made of polyester and plastics.The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. . Therefore the output and benefit of the machine is higher than the machines of the same specifications. The advanced Mitsubishi programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably . It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity,it is the best choice for the beverage plant.

 Technical paramter:

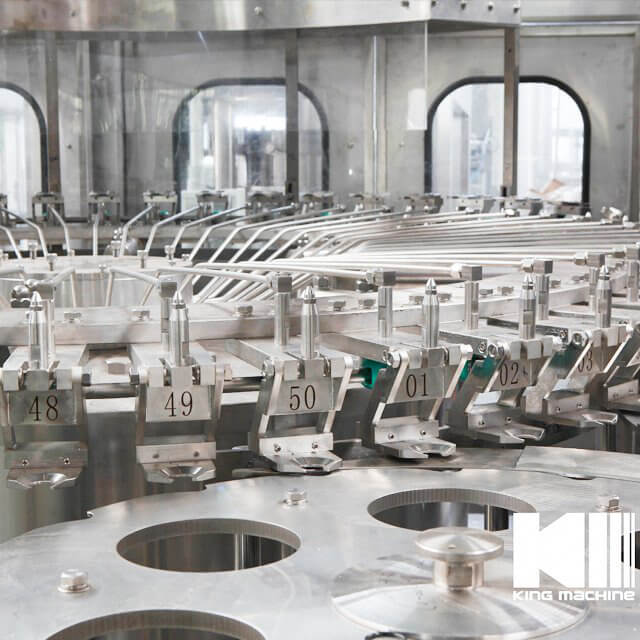

Number of washing positions 50

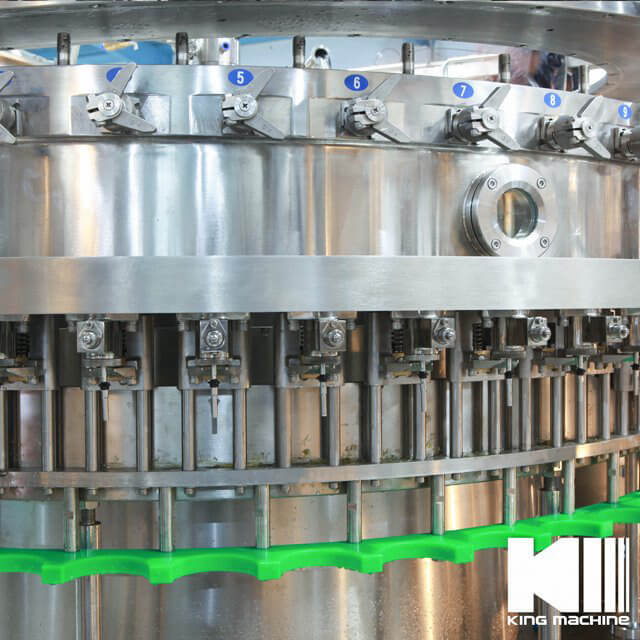

Number of filling positions 50
Number of capping positions 15
Capacity based on 500ml 16000-20000bottles/hour
Suitable bottle height (mm) 160-320
Suitable bottle diameter (mm) ¢50-¢115
Power of main motor (KW) 11kw
Water pressure (Mpa) 0.25-0.3Mpa
Filling type Equal pressure
Filling temperature 3~4 degree
Shape dimension 5500MM*3500MM*2500MM
Weight 10000kg
Suitable bottle PET bottle with screw cap

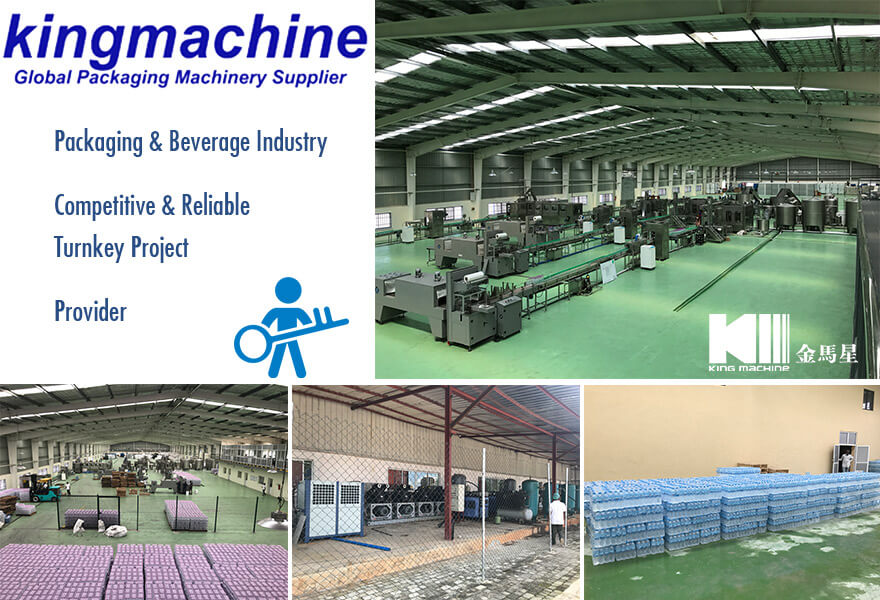

Nearly 15 years, King Machine has provided bottling & packing equipments  of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. All your different requiremts King Machine can always offer you the most professional solutions and turnkey project.

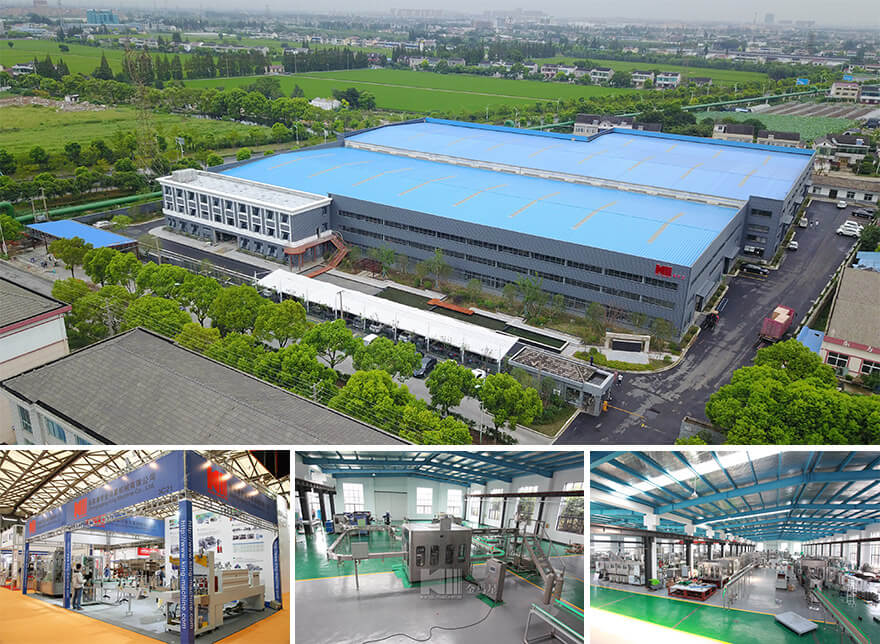

1.Standardized workshop of total 20,000 square meters.
2.Verification Certificates of equipments: ISO9001:2001; CE Certificate, SGS Certificate, BV Certificate, standard organisation of nigeria , cnca certificate, Logo trademark registration, etc.
3.The equipments will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
4.Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.

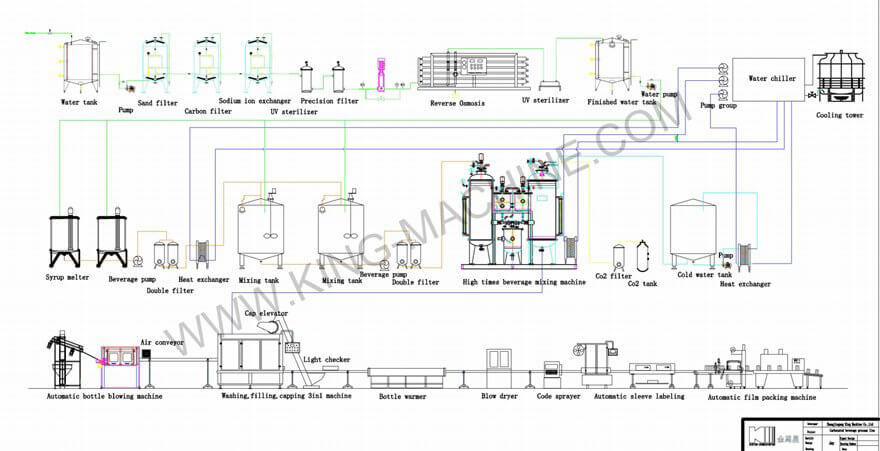

5.The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.
6.Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
We control the quality of our equipments by manufacturing and machining ourselves. Pay attention to each assembly detail, and our experienced technicians monitor each key point efficiently during assembly, to ensure that the performance and appearance of each product be pefect.
To help our customers build an ideal factory. With efficient cost control, we have found the right balance with our customers: diversified production range, high-class packaging forms. Meanwhile market competitivness has been improved because of the efficient operation mode of equipments.

Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine

Q2: Do you have agent and after-service stations?
A2: So far we have agent in Yemen,Nigeria,Dubai,India,Kenya,Dubai welcome to join us!

Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.

×
