36000 BPH Flow Meter Filling Machine Combiblock For Csd & Soda Water 36000 BPH Flow Meter Filling Machine Combiblock For Csd & Soda Water

Our combi block machine capacity can reach for example like water production 0.5l bottle capacity is 12,000bph to 54,000bph And 4l 5l Capacity is 4000bph to 6000bph 15L 19l Capacity is 1500bph to 3600bph Our combi block machine single cavity capacity can reach 2000bph to 2500bph .

Quantity:
Share this:
  • Model: KM-CGX
  • Brand: KM
  • Code: 8422
  • Product Description
  • Turnkey Project
  • Company Information
  • Our Customer
  • FAQ

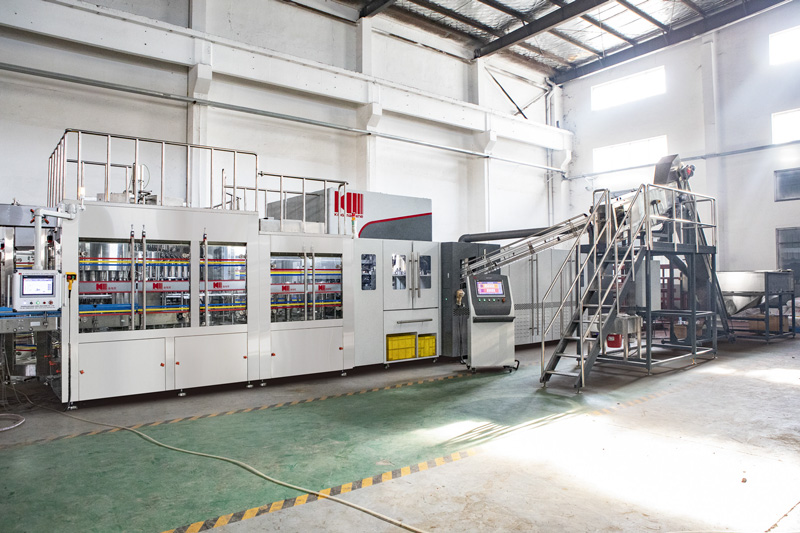

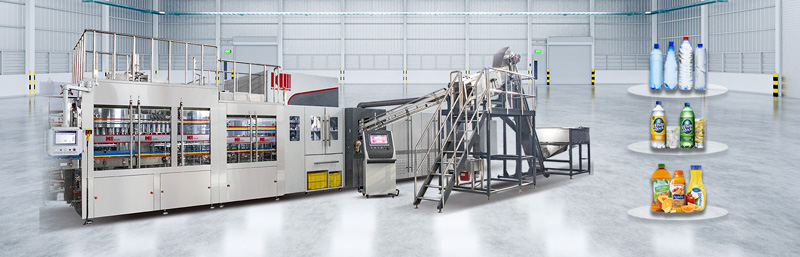

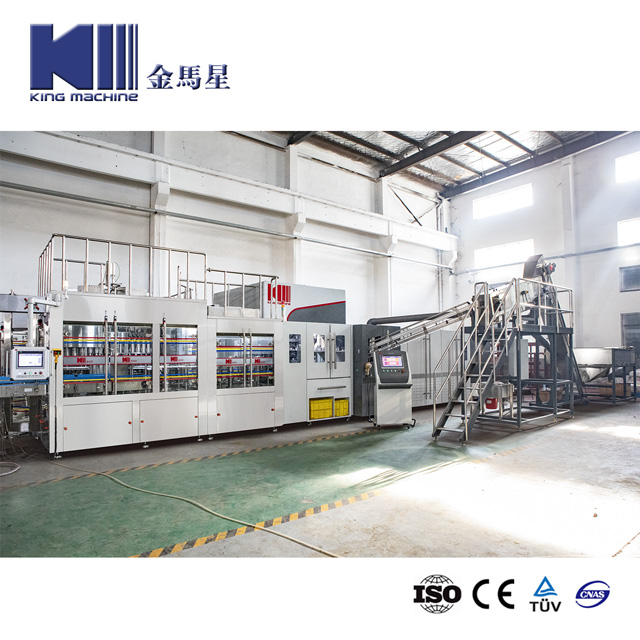

A to Z Pure Water Beverage Drink Blow/ Fill/ Cap Combiblock Filling Machine

Water Filling Machine.jpg


Product Description

We have developed a multi-functional blowing filling and capping combination block, through the applicant of optical , mechanical, electrical and pneumatic integration, it adopts servo system for synchronous control, realize the comprehensive control and production of multiple equipment, improve the production efficiency of the entire production line , and reduces the investment cost , energy consumption and maintenance cost. It is suitable for the production of carbonated drink, juice and water , and other products .

blowing filling and capping.jpg
Our combi block machine capacity can reach
for example like water production
0.5l bottle capacity is 12,000bph to 54,000bph
And 4l 5l Capacity is 4000bph to 6000bph
15L 19l Capacity is 1500bph to 3600bph
Our combi block machine single cavity capacity can reach 2000bph to 2500bpb .

Water Filling Packaging Machine Combi.jpg

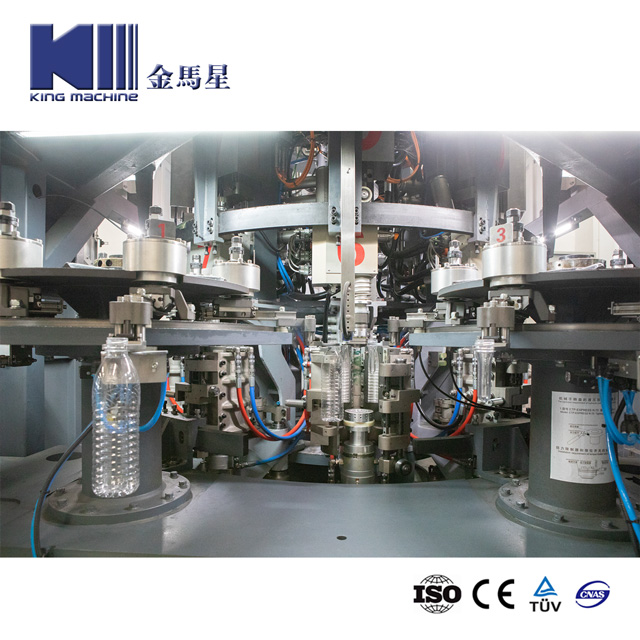

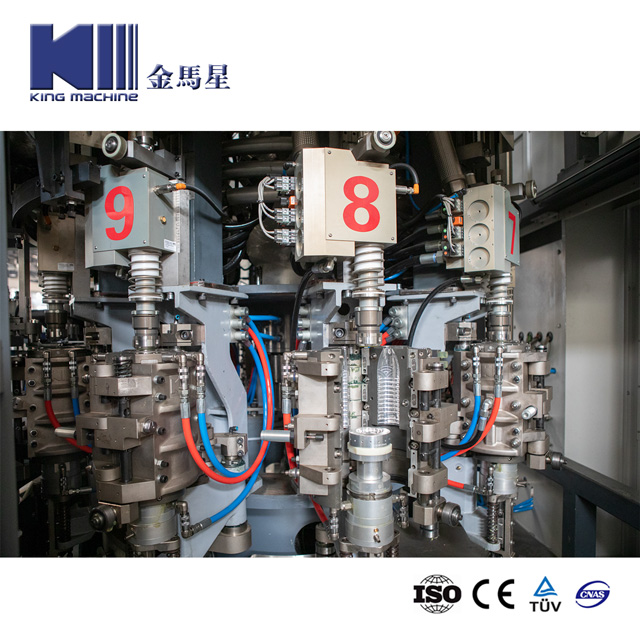

Blowing part

King Machine Co., Ltd. adopts the most advanced bottle blowing technology to the fully automatic rotary blow molding machine XC10, which is a high speed rotary blow molding machine to blow PET (Polyethylene Terepthalate) into bottles. XC10 fully automatic blow molding machine works completely independtly with the fit preform.


Low cost. Good technology and technology parameter design remarkably reduce the power, compressed air and water consumption.

Visible, maintainable, high safety. The operator could watch the produce proceeds and machine parts through windows of the machine, and could master the producing condition and running situation online which benefits the mechanical maintenance and running safety.


blow molding machine.jpg

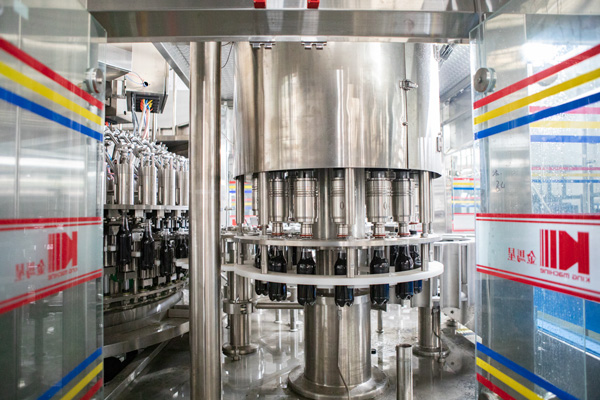

Washing Filling Capping

The machine is mainly used in the water filling operations. The three functions of bottle rinsing, filling and capping are composed in one body of the machine. The whole process is automatic. The machine is used in filling mineral water and purified water in bottles made of polyester and plastics.

Water Bottling Machines.jpg

filling machine

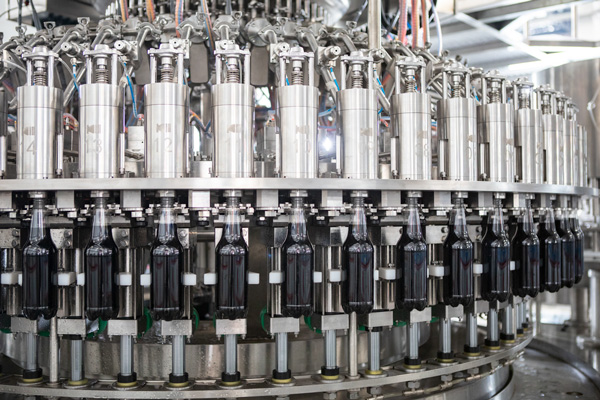

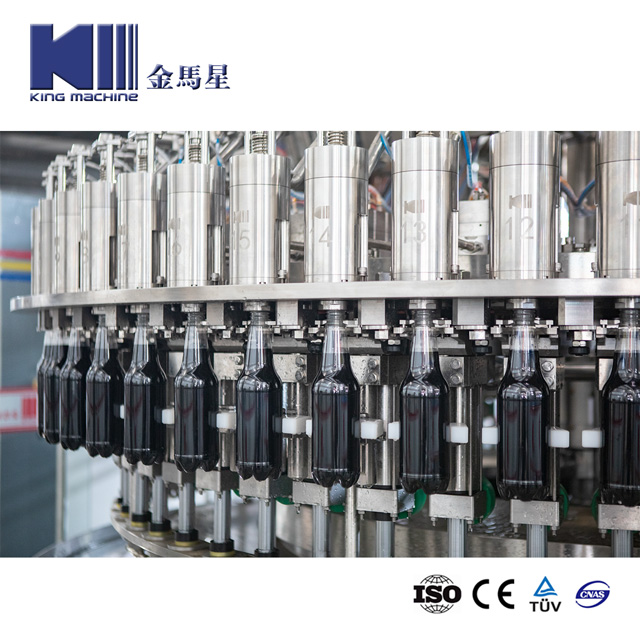

Flowmeter Filling heads

The filling machine is equipped with high precision flowmeter aboved each filling valve pipeline.
when the machine is designed , a parameter package is set on the electrical control system for each capacity.
each valve filling volume can be set through the touch screen, filling capacity accuracy can reached 2‰,
in the process of filling, filling valve and bottle neck do not contacvt , so filling process is very clean , without second pollution.
the filling valve opening and closing by cylinder which controlled by soleniod valve, the first rapid filling and stay for a while to certain amount and then switch to slow filling.

capping machine

Capping heads

The capping machine is the highest precision in 3-in-1 unit machine, on the reliability of equipment operation, has enormous influence on the defective rate of the product.Introduced the world's most advanced Italian AROL capping machine technology, combining with the filling machine production experience improvement, and ask college of Shanghai Jiao Tong university mechanical engineering institute of electrical and mechanical design and automation technology of experts and professors to help design.


Auxiliary machines
water treatment plant

RO water treatment system

We adopt different equipment to produce pure water, mineral water etc. The main equipment of RO Water Treatment Plant are silica sand filter, active carbon filter, sodium ion exchanger, hollow fiber, RO( reverse osmosis), UV sterilizer, precision filter, ozone generator, water tank etc. It can effectively get rid of muddy organic matter, iron, manganese etc, reduce the hardness of the water to make all specifications of the water quality fully meet the state fresh water standard of fresh drink water.

Flat conveyorFlat conveyor

·The bottle belt is synchronously tracked with the host or the upstream and downstream equipment, which are connected to control system.
·The bottle does not fall, does not jam, and does not block during the conveying process.
·According to the user's needs, the buffer platform can be set in front of the labeling machine (the buffering time is usually about 1-2 minutes).
bottle labeling machine

Automatic labeling machine

1.Hot melt glue labeling machine is widely used for different material of container .
2.The label cost is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers.
3.It is the most economical models in cost to make mass production and intergrated operating.
4.The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles.

PE film packaging machine

PE film packaging machine

Automatic PE film heat shrink wrapping machine is suitable for wrapping of such products as pop top, mineral water , bottles. beer, drinks etc. Working with PE film shrink tunnel to pack the goods perfectly , the whole production process adopts the Germany advanced technics, and the main parts are imported from international famous companies. It consists of seven actuating motor, through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group out from the hot shrinking packing machine.


Nearly 15 years, King Machine has provided bottling & packing equipments  of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. All your different requiremts King Machine can always offer you the most professional solutions and turnkey project.

Nearly 15 years, King Machine has provided bottling & packing equipments  of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. King Machine offers complete filling and packaging solutions for beverage industry and excellent lifelong time service.


1.Standardized workshop of total 20,000 square meters.
2.Verification Certificates of equipments: ISO9001:2001; CE Certificate, SGS Certificate, BV Certificate, standard organisation of nigeria , cnca certificate, Logo trademark registration, etc.
3.The equipments will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
4.Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
5.The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.
6.Professional installation team who can speak fluent English can help customers make benefits in a shortest time.

We control the quality of our equipments by manufacturing and machining ourselves. Pay attention to each assembly detail, and our experienced technicians monitor each key point efficiently during assembly, to ensure that the performance and appearance of each product be pefect.

To help our customers build an ideal factory. With efficient cost control, we have found the right balance with our customers: diversified production range, high-class packaging forms. Meanwhile market competitivness has been improved because of the efficient operation mode of equipments.


Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine

Q2: Do you have agent and after-service stations?
A2: So far we have agent in Yemen,Nigeria,Dubai,India,Kenya,Dubai welcome to join us!

Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.

×
