Automatic 5 Gallon Bottle Water Filling Machine Automatic 5 Gallon Bottle Water Filling Machine

Automatic 5 Gallon Bottle Water Filling Machine is for filling mineral water, distilled water and purified water into barreled/bucket/jar. The barrel water drink filling machine works reliably and efficiently based on the compact structure and high automatic technology. This barrel water drink filling machine is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.

Quantity:
Share this:
  • Model: CGF
  • Brand: KM
  • Code: 8422301090
  • Product Description

Product name: Automatic 5 Gallon Bottle Water Filling Machine

    1. It is specially used for filling 1 gallon to 5 gallon) bottled water.
    2. It is a good machine line for the all shapes of bottles.
    3. The machine is designed for bottles such as PVC. PE. PET etc. It can be used for different shapes of bottles.

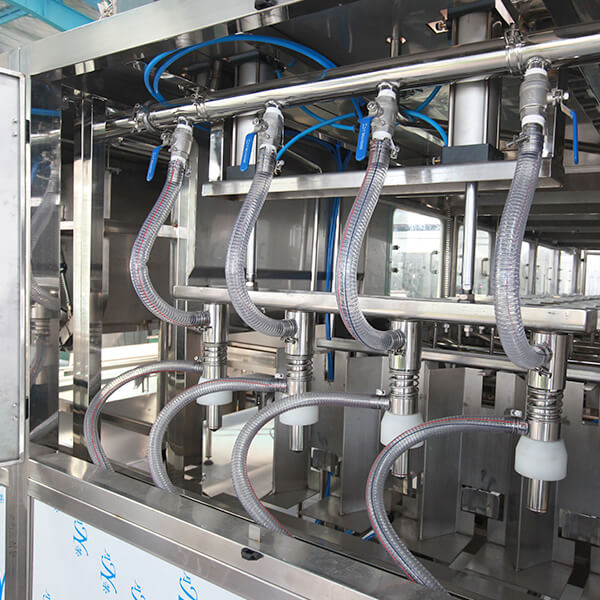

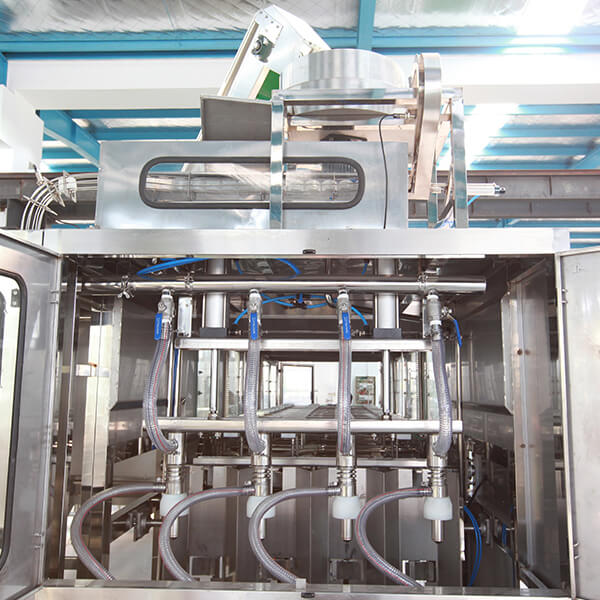

    4. The machine line with stainless steel rinse nozzles, pressure filling valve, screw capper, hot steam film shrinkage machine
top quality line.
    5. Filling time is controlled by the PLC.
    6. The machine adopts high quality stainless steel frame(No. Z304).
    7. The machine design appreance is beautiful, easy operation, maintainence and working stable.

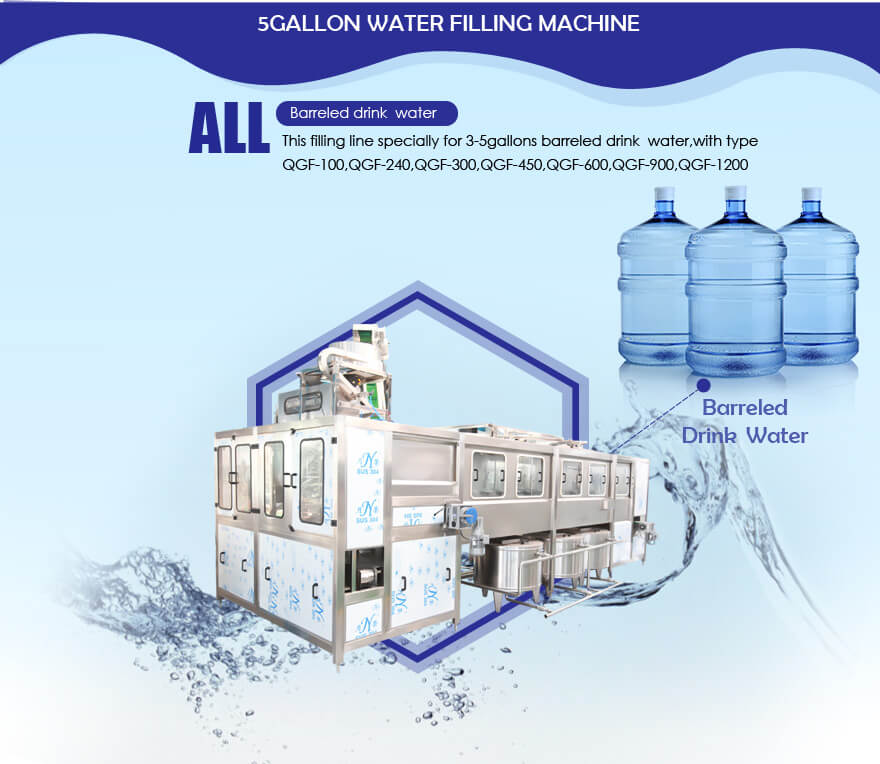

    This filling line specially for 3-5gallons barreled drink  water,with type QGF-100,QGF-240,QGF-300,QGF-450,QGF-600,QGF-
900,QGF-1200,It intergrates bottle washing,filling and capping into one unit ,In order to achieve the purpose of washing and sterilizing ,The washing machine use multi-washing liquid spray and-thimerosal spray,This thimerosal can be used circularly,The capping machine can cap barrel automatically ,this line equips with water spraying device in order to ensure those caps sterilizer and clean .it also can automatically carry out barrel ,washing,sterilizing ,filling ,capping ,counting and products discharging ,with complete function ,modern design and high degree of automation ,it is a new kind of barreeled water auto-production line ,which intergrates mechanism ,electricity and pneumatics technologies together.
Model QGF-100   QGF-300     QGF-450        QGF-600         QGF-900
Filling heads 1   2  3 4  5
Volume(L) 18.9    18.9    18.9 18.9    18.9
Capacity(b/h) 100    300    450 600    900
Gas consumption(m3/min) 0.37    0.6   0.8 1   1.5
Moto power (kw) 1.38    3.8     5.6  7.5    9.75
Weight(kg) 680    1500    2100   3000      3500
Size(W*L*H)(m) 3700*1300*1600 4060*1860*1600 5000*1500*2200 5400*2600*2200 8500*6000*1800

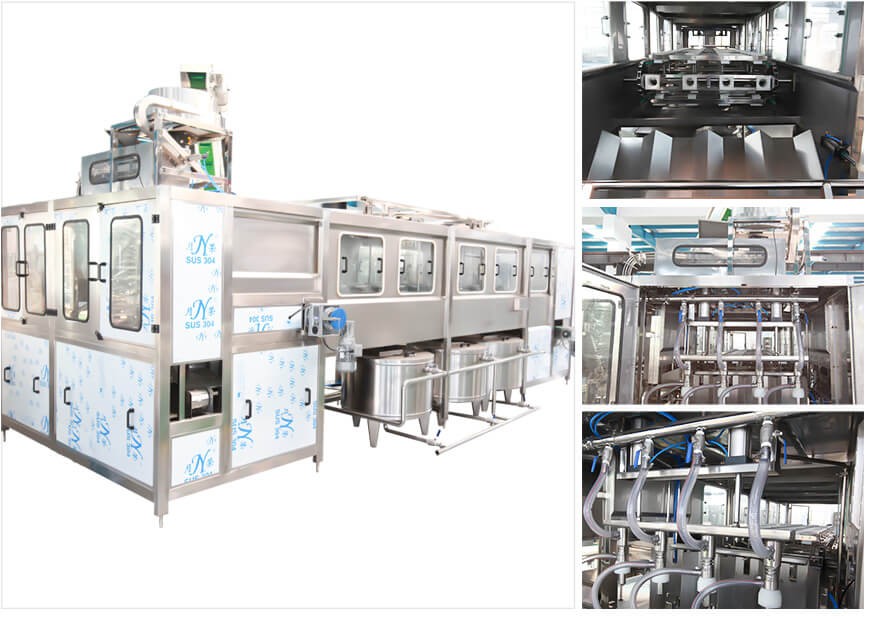

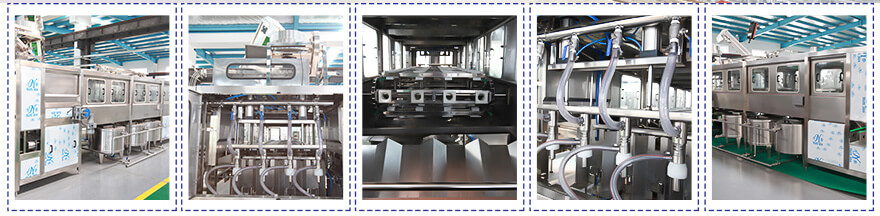

5 Gallon Bottle Filling line
It intergrates bottle washing,filling and capping into one unit ,In order to achieve the purpose of washing and sterilizing ,The washing machine use multi-washing liquid spray and-thimerosal spray,This thimerosal can be used circularly,The capping machine can cap barrel automatically.


Q:How about the spare parts?
A:We will send one year enough easy broken spare parts together with the machines,shipping together.During the warranty time,we will supply the spare parts with our cost including the delivery fees.

Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.

Q:How to install my machines when it arrives?how much the cost?
A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.

Q:When can I get my machine after I paid?
A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.

Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q:Are you a trading company or a manufacturer?
A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in reasonable price, Welcome to visit us.

×
