Automatic Handle Applicator With Safety Shut Off Sensors On Doors
single-lane machine capable of a production speed up to 30 pack/min on each single lane
Quantity:
Share this:
Product Description

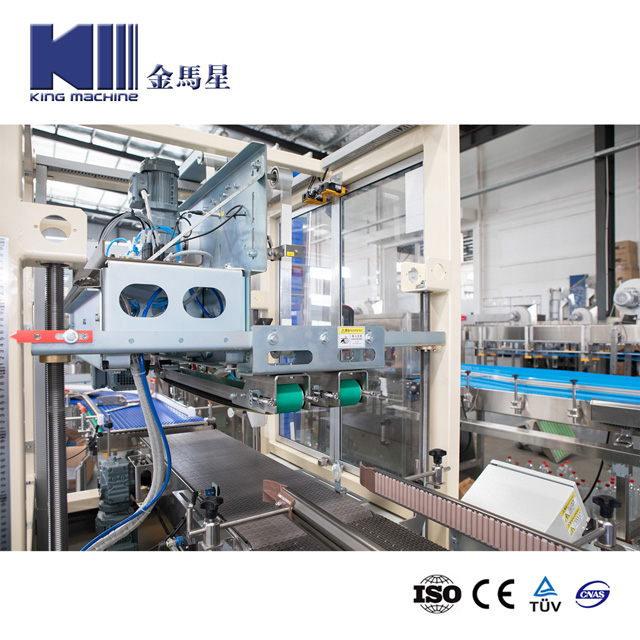

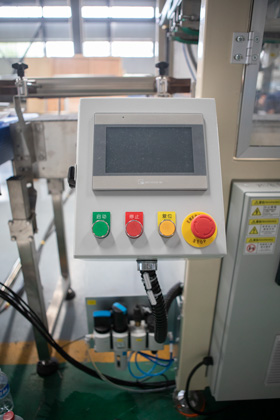

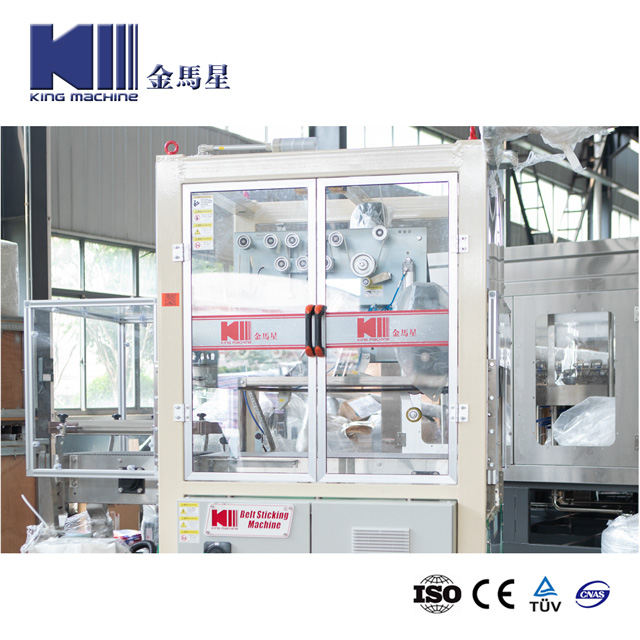

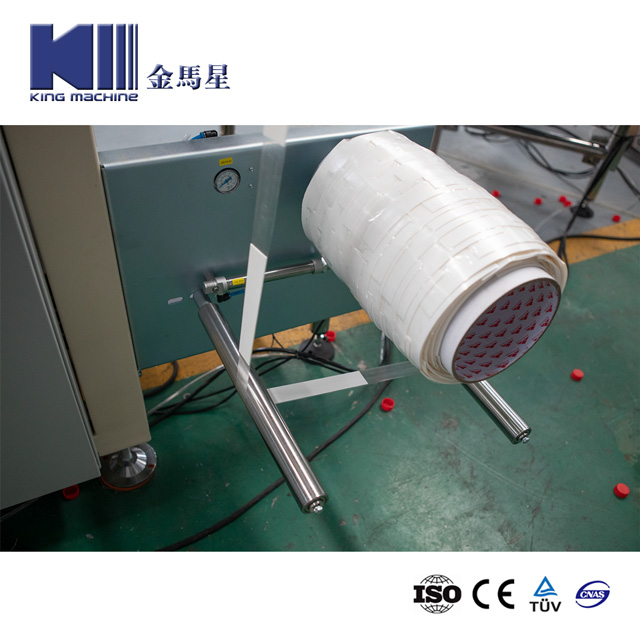

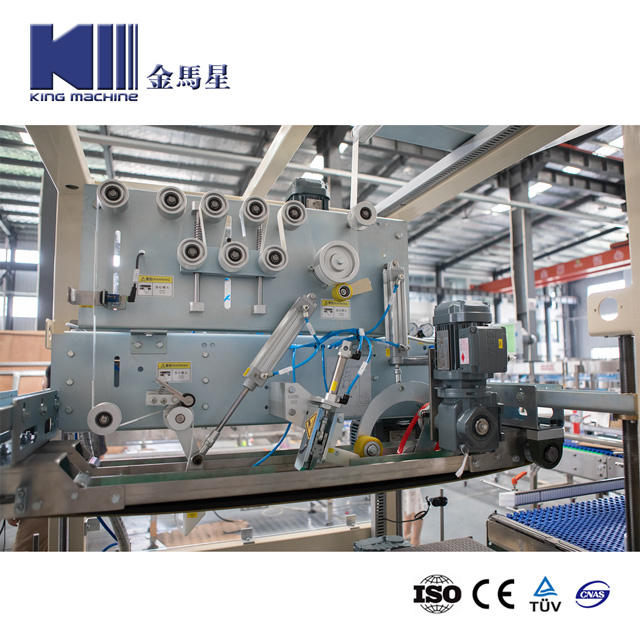

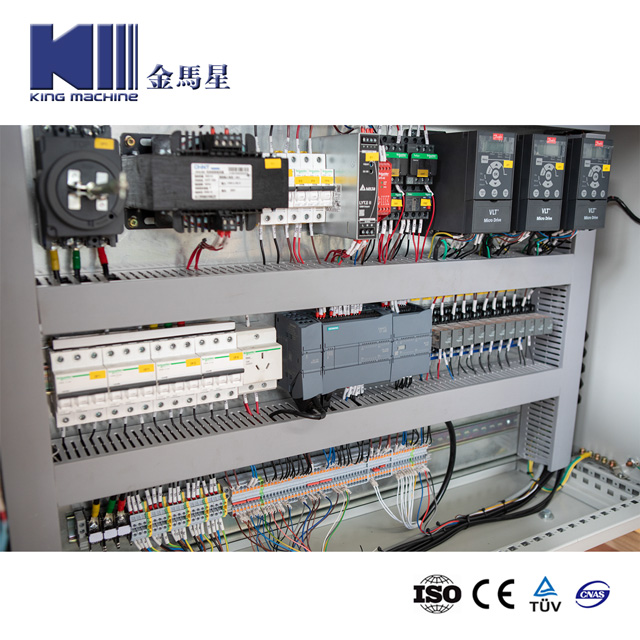

Description of the machine The machine, in its base configuration is composed of: * An stainless frame (RAL 5015) made of tubular beams welded in a closed structure, provided with adjustable feet, safety doors with lexan screens and security switches * A reel holders for pre-made handle-spooled reels (350mm width – one per each lane) * The infeed conveyor chains (one per each lane), enabling the management of the flow of packs coming from the upstream lanes * One sets of upper belts, working in synchronisation with the main conveyors, which hold the packs firmly in place from their top during the handle-application cycle * Handle-application head with electro-pneumatically activated cylinders to apply and cut the self-adhesive carry handle. The application heads can also work in “By-Pass mode” * A pushbutton panel with alphanumeric display for diagnostic messages and indications on the functioning state of the machine * A beacon lamp for remote signalling of the machine’s operating conditions * An electrical control cabinet mounted onboard the machine * A full downstream warning photoelectric cell, to be installed on the outfeed conveyors at the output of the machine (conveyors not included) * There is no alarm at the infeed for the detection of any packs damaged or deformed during their passage through the machine. There is however a sensor to check whether any packs have fallen over on the conveyor before they enter the machine.
handle applicator
handle applicator
handle applicator
Automatic Handle applicator specifications Machine speed ......................: 30 cycles per minute in function of product and film Product dimensions .............: min 60 x 120 x h. 60 mm/max 320 x 460 x h 370 mm Handle tape width ................: max 25 mm Handle spolled reels width : 350 mm Total Power .......................... : 3.5 kW Voltage................................... : 400V - 3 Phase / 50 Hz + N + G Auxiliary voltage ................. : 24V DC/AC. Electrics IP ............................. : IP54 Air consumption ............... : 100 Nl/min at 6 bars Total weight .......................... : 850 Kg Working room temperature : min +5°C – max +40°C Relative room humidity ....... : max 70%
