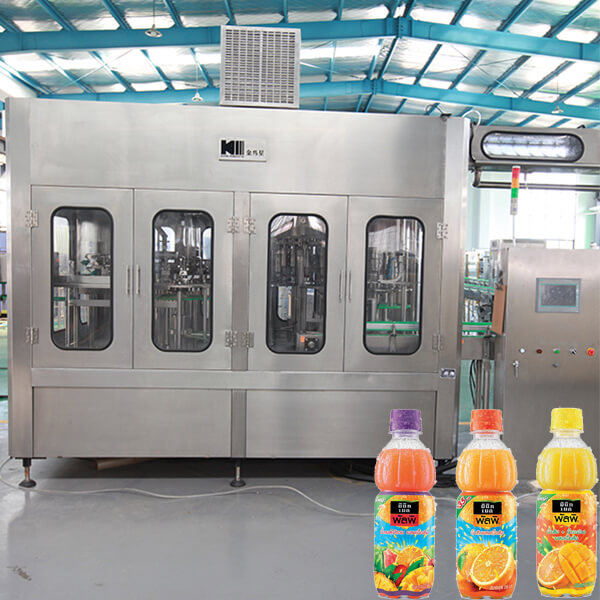

Automatic Orange Juice Filling Machine 8000BPH

Automatic Orange Juice Filling Machine 8000BPH

RCGF series 3-in-1 set of machine is mainly used in the beverage filling process. The machine combines washing, filling and capping with complete automation, suitable for filling juice and tea beverage. With temperature controller, it can also conduct thermal filling. It is used for all kinds of bottles. The bottle neck hanging technology makes the process of changing bottles easily by only adapting the height of conveyor chain. The filling process adopts hot filling technology with water-supplying system under constant pressure, which makes filling process faster and more stable. Compared with other equipment of same kind, this machine with a better quality and thus enjoys a high ratio of function against price. The hot filling type machine works with balanced tank and vacuum system.

Quantity:

Share this:

Model: RCGF 24-24-8
Brand: KM
Code: 8422301090

Product Description

Product Description

Automatic orange juice filling machine 8000BPH RCGF 24-24-8 technical introduction and working principle:

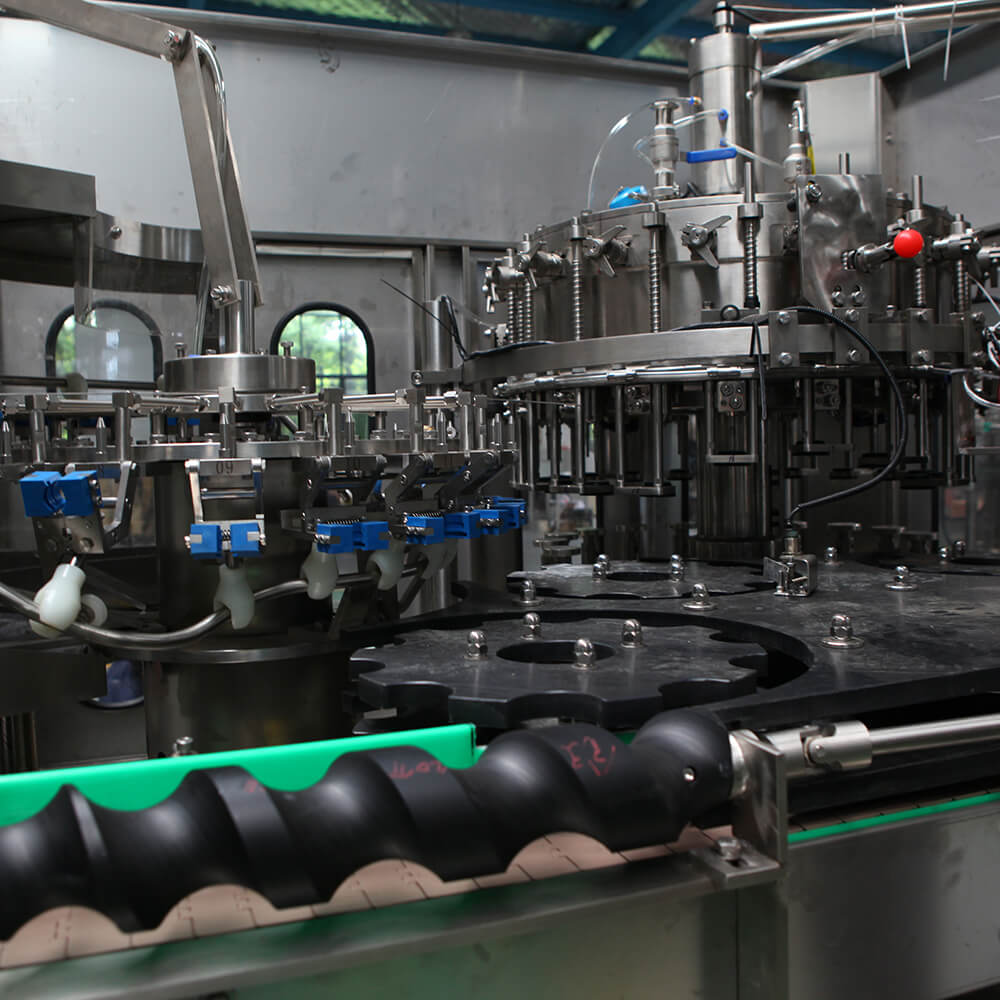

1). 1.Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

2). Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

3). The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

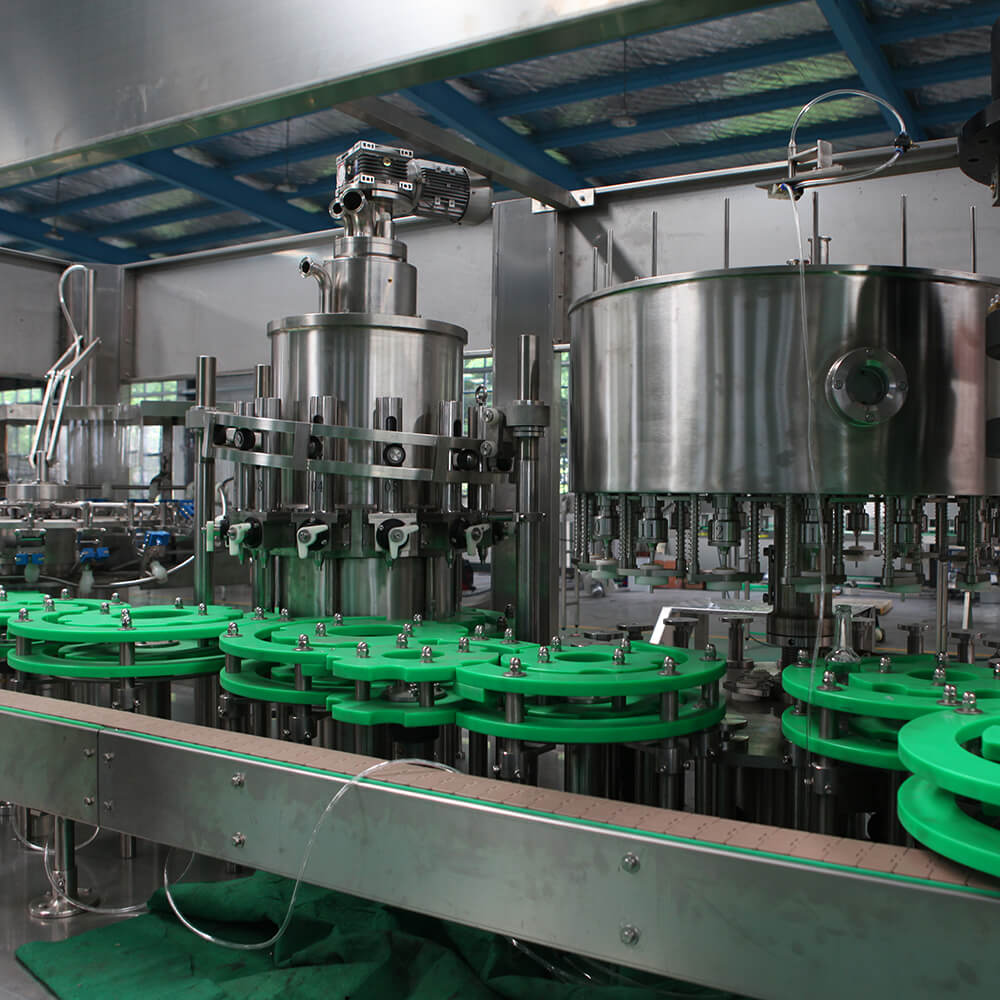

4). High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

5). Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

6). Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan\'s Mitsubishi, France Schneider, Siemens.

juice production line.jpg

Containers and specifications
Project Name: Full Automatic Complete Juice 2000-20000bph Production Line				Hot Filling Fruit Juice
Material	Shape	Filling volume	Filling level（mm）	Neck type
PET Bottle	Square or Round Bottle	100-2000ml	Distance from bottle neck According request	As request
Adjustable specifications of the bottle type	【Middle Mould Base】Bottle diameter ≤105mm Bottle Height≤335mm
	Customers need to buy additional change-over parts for the different bottles. If using square bottles, then bottle separating system will be added.
Juice Preparation	Fruit , Concentrate, Powder mixing .....
Container Label & Control Mode		Packaging system		Palletizing system
Hot Melt Roll-Fed PVC Shrink Label Full Label/ Half Label Manual / Automatic		Packing system	Min, Spec.	Manual Low position gantry palletizer Robot Palletizer High position gantry palletizer Single Arm Palletizer Manual Palletizer
		Manual Film shrinker Wrap Around packer Robert Packing Machine	12 23 34 46 3*5
User Ambient Conditions		Temperature：10～40℃；Humidity：No dew
User Electrical Supply Specification		Voltage：380V±5%， 3phase； Frequency：50HZ±1%

Filler for juice

Filler for juice with pulm

Model	Washing heads	Filling heads	Capping heads	Capacity 500ml(bph)	Bottle size (L)
RCGF14-12-4	14	12	4	1500 bph	0.25-2L
CGF16-16-5	16	16	5	3000 bph	0.25-2L
CGF18-18-6 CGF24-24-8	18 24	18 24	6 8	4000-5000 bph 8000-9000 bph	0.25-2L 0.25-2L
CGF32-32-10	32	32	10	10000-12000bph	0.25-2L
CGF-40-40-12	40	40	12	14000-15000 bph	0.25-2L
You can also customize the juice filling machine size you needed

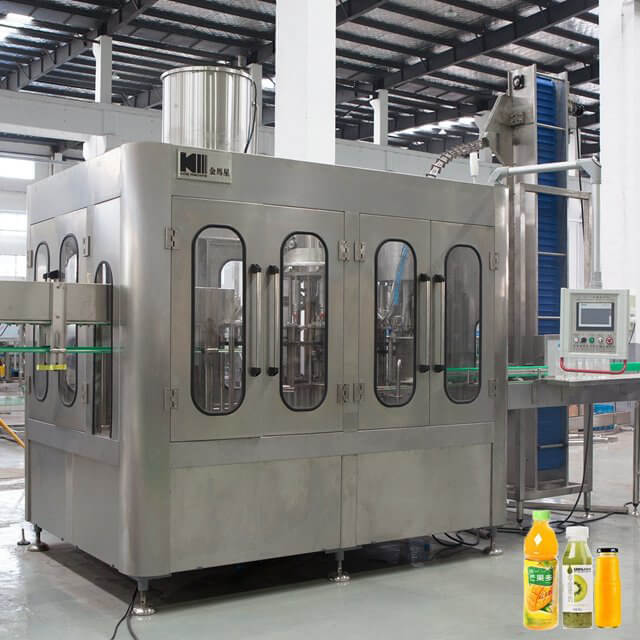

Automatic orange juice filling machine

Juice Filling Machine suitable for filling different kinds juice and tea beverage. With temperature controller, it can also conduct thermal filling. It is used for all kinds of bottles. The bottle neck hanging technology makes the process of changing bottles easily by only adapting the height of conveyor chain. The filling speed will not be affected.

Q: How about the spare parts?
A: We will send one year enough easy broken spare parts together with the machines, shipping together. During the warranty time, we will supply the spare parts with our cost including the delivery fees.

Q: How long time for installation?
A: According your machines order, we will send one or two engineers to your plant, it will take about 10 days to 25 days.

Q: How to install my machines when it arrives?how much the cost?
A: We will send our engineers to your factory to install the machines and train your staff how to operate the machines. Customer pay air tickets go and back, accommodation and USD80/day/person.

Q: When can I get my machine after I paid?
A: Normally production time is around 30-60days, the exactly depend on what kind of machine you order. The shipping time is based on your destination port.

Q: What's your guarantee or the warranty of the quality if we buy your machines?
A: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q: Are you a trading company or a manufacturer?
A: We are an Original Equipment Manufacturer so that we can provide you high quality machines in raeasonable price, Welcome to visit us.
