1, power and power: 380V ± 10%, 50Hz 1.8KW (three-phase five-wire system).
2. External air source: 0.6-0.8 Mpa, air consumption: 300NL/min.
3, out of the box capacity: 25 to 27 boxes / minute (according to the carton)
Carton size: L260-450*W170-350*H170-350mm
5. Forming and bonding method: BOPP adhesive tape can meet the sealing requirements of laminated carton and oil film carton.
6, out of the box: vacuum sucker, horizontal molding;
7. Carton requirement: three layers of cardboard materials (see machine box requirements)
Out of range L=240~450mm W=190~400mm M=120~400mm L+W≦650mm
8, Noodle paper 175 cattle card corrugated paper 140AA high strength paper 175 cattle card
9, noise: ≤ 75 dB.
10, environmental conditions: humidity ≤ 98%, temperature 0-40 °C.
11. Carton outlet height: 650mm adjustable ± 50mm.
12, tape width: 48-60mm.
13, suitable for the use of tape diameter: ≤ 300mm.
14. The adhesive length of the head and tail of the tape and the carton is 40-50mm.
15, out of the box: vacuum suction cup, side molding.
16. Tank storage mechanism: 100 unformed cartons can be placed at one time and can be added at any time.
17. Dimensions: L2300mm× W1150mm× H1900mm
18, machine weight: 1200kg.

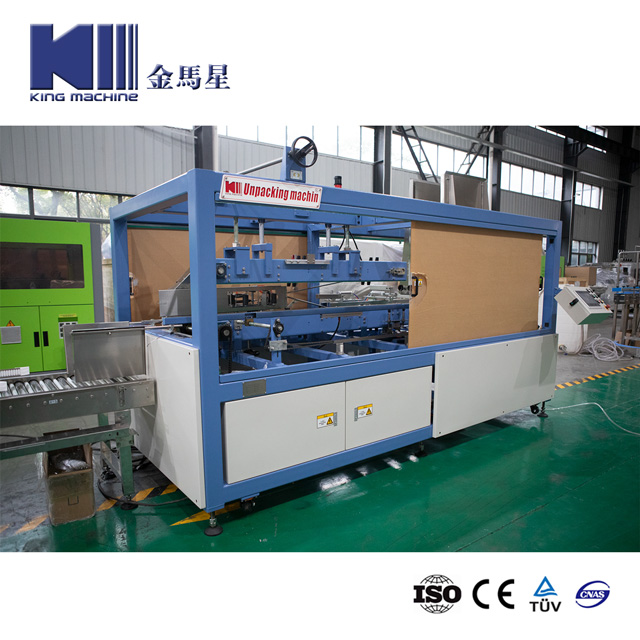

 Automatic Unpacking Machine |
