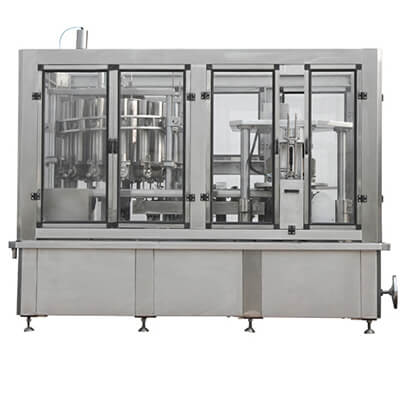

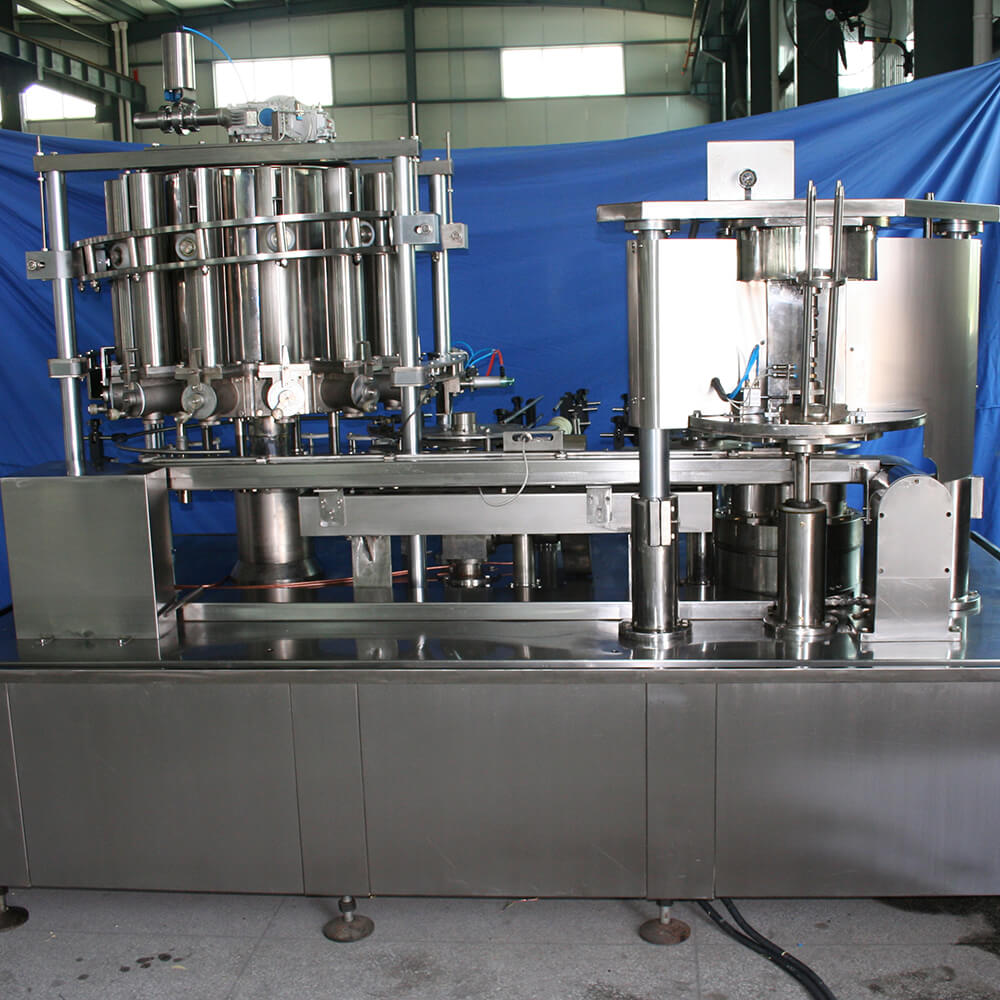

High Density Liquid Filing And Sealing Machine(25-210 cans/min) High Density Liquid Filing And Sealing Machine(25-210 cans/min)

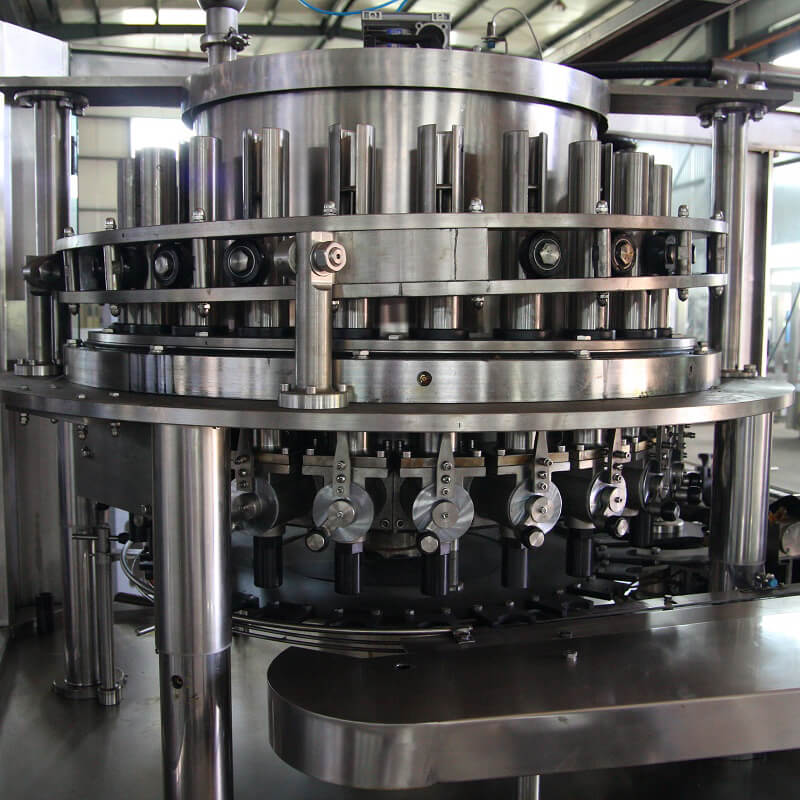

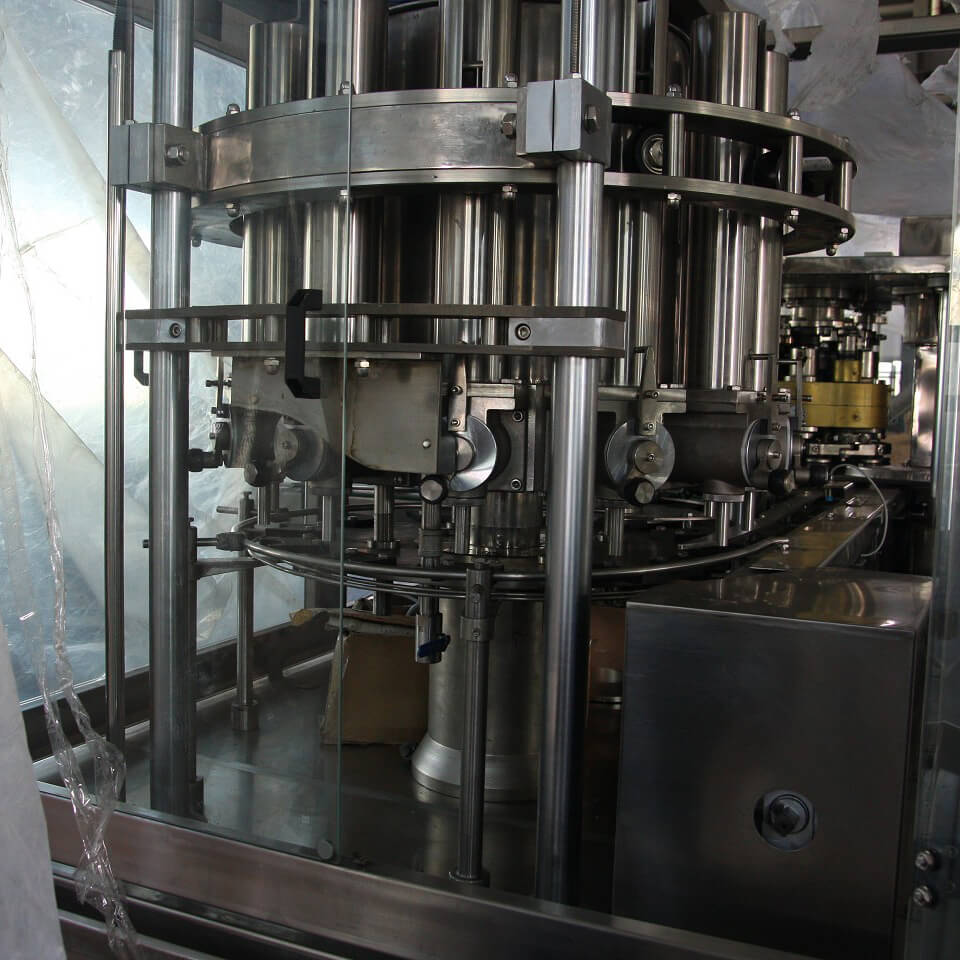

This machine designs for high-density liquid filling.It equipped 12 rotated filling station with the capacity of up to 1000 g high-density liquid filling.By adopting the Swiss advanced assembling machinery standardization , this machine was designed bu aero-dynamic control sealing with can bottle contactless method,and equipped by touchable screen control pad.This machine is the ideal device for firms like tomato sauce,honey and milk product-wise factory.

Quantity:
Share this:
  • Model: GT6-1(N),GT12-4(N),GT18-6
  • Brand: KM
  • Product Description

This machine designs for high-density liquid filling.It equipped 12 rotated filling station with the capacity of up to 1000 g high-density liquid filling.By adopting the Swiss advanced assembling machinery standardization , this machine was designed bu aero-dynamic control sealing with can bottle contactless method,and equipped by touchable screen control pad.This machine is the ideal device for firms like tomato sauce,honey and milk product-wise factory.

Model: GT6-1(N) GT12-4(N) GT18-6
Capacity 25-40cans/min 80-180cans/min 80-210cans/min
Can Dia Φ99mm-153mm Φ52.5mm-99mm Φ52.5mm-99mm
Can Height H89-245mm H39-133mm H39-133mm
Air Pressure 0.5-0.6Mpa 0.5-0.6Mpa 0.5-0.6Mpa
Power 380v 50hz 3KW

380v 50hz 5KW

380v 50hz 5KW

Overall size

2380*1450*2250mm 3500*1720*2250mm 3700*1920*2250mm
Weight 3500kgs 4000kgs 5000kgs


Q:How about the spare parts?
A:We will send one year enough easy broken spare parts together with the machines,shipping together.During the warranty time,we will supply the spare parts with our cost including the delivery fees.

Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.

Q:How to install my machines when it arrives?how much the cost?
A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.

Q:When can I get my machine after I paid?
A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.

Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q:Are you a trading company or a manufacturer?
A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in raeasonable price, Welcome to visit us.

×
