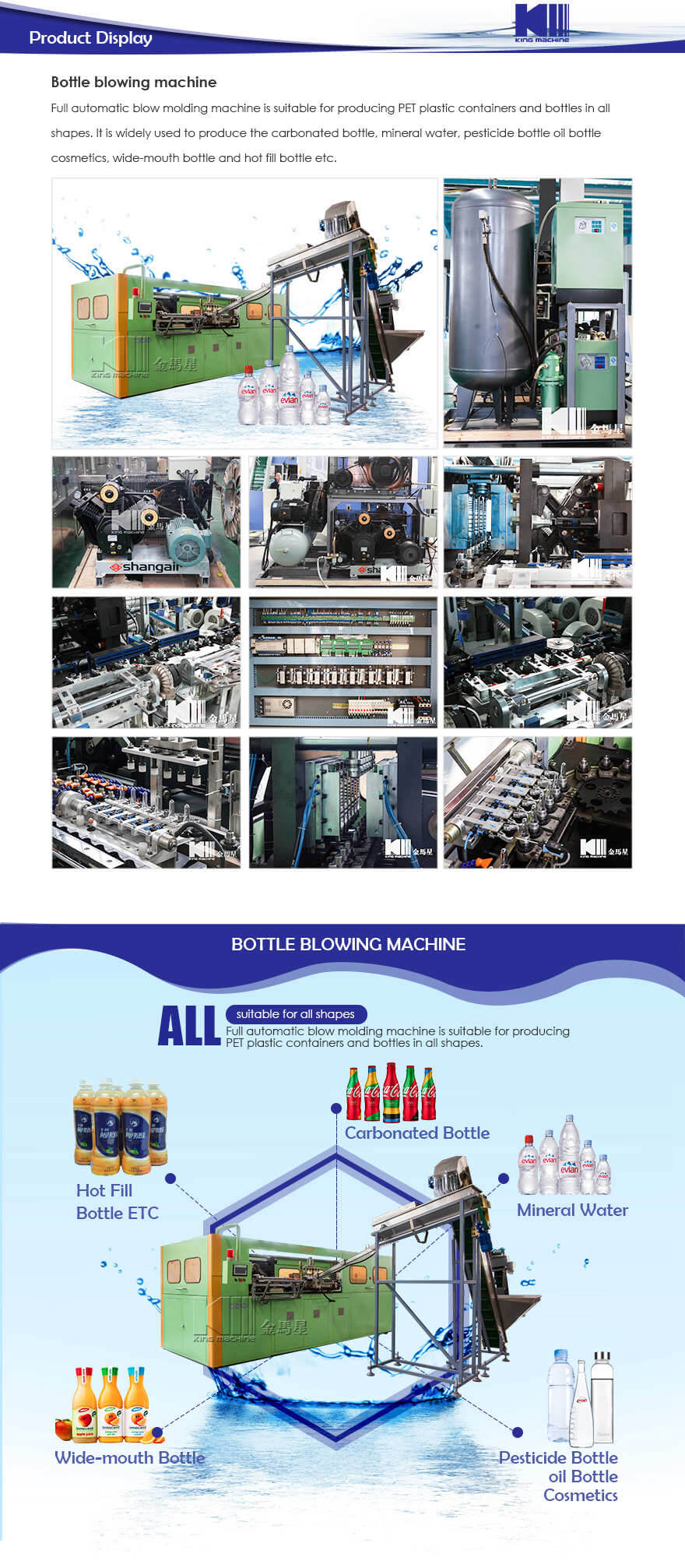

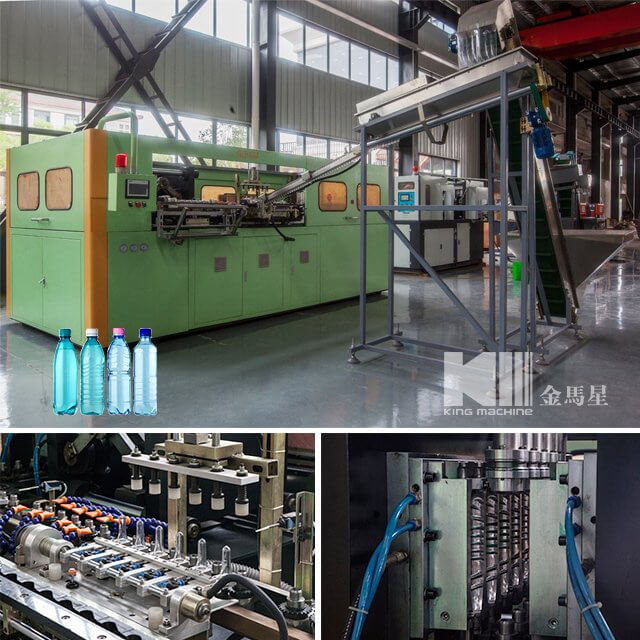

Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
1. Electrical
1.1 PLC will protect and control the blowing procedure of the machine
1.2 Operation platform directly controls the machine by EV human-computer interface which will display the production situation intuitively, the parameter can be properly adjusted in the interface according to the blowing technology.
1.3 The human-computer interface has production situation, control parameter and alarm and other interfaces
1.4 Air throttles are fitted at both ends of cylinder, which will make the whole machine more stable
2. Preform scrambler
2.1 The stepless speed regulating of preform loading is accomplished
2.2 Simple structure, widely application

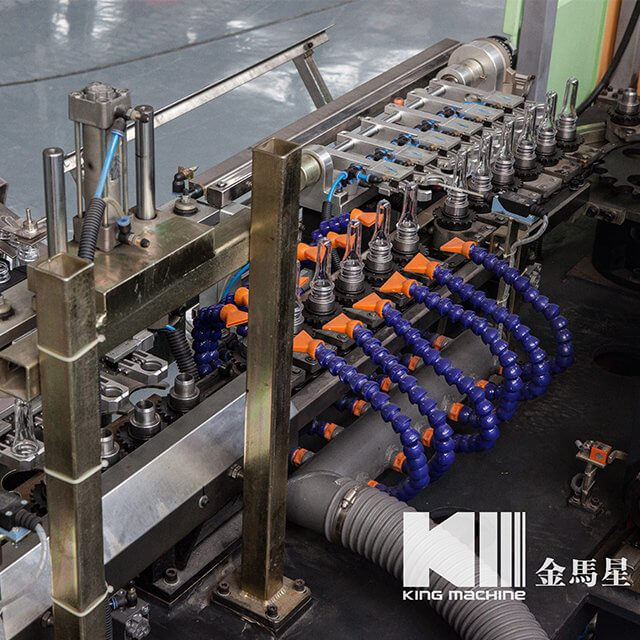

3. Heating part
3.1 Stale infrared ray heating system has 4 heating zone, each of them are controlled saperately
3.2 Hangzhou Xizi module and intelligent control module accomplish the gaol of heating every part of preform through adjusting the voltage of infrared ray lamps
3.3 Induced air device overcomes the convection of air, better for stabling heating environment, improving heating effeciency
3.4 Air cooling and water cooling devices avoid the neck from being heated to disformed

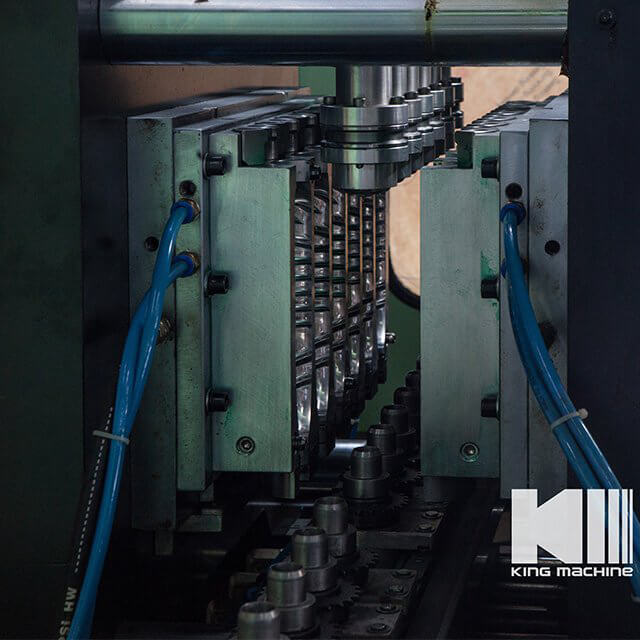

4. Blowing machine mold frame
4.1 The mold frame system is driven by action cylinder will move in the guiding rail accurately and stablely
4.2 Quick mold closing and pneumatic high pressure mold locking devices efficiently solve the mechanical mold locking problems such as mold expand and big mold closing line and etc.
5. Locating device
5.1 The whole machine's transmission is driven by the same power, so the synchronism is perfect
5.2 Mechanical locating design leads to simple structure and stable running situation
5.3 Imported common standard components are used in the chain guiding rail system, so the system is stable and easy to maintain

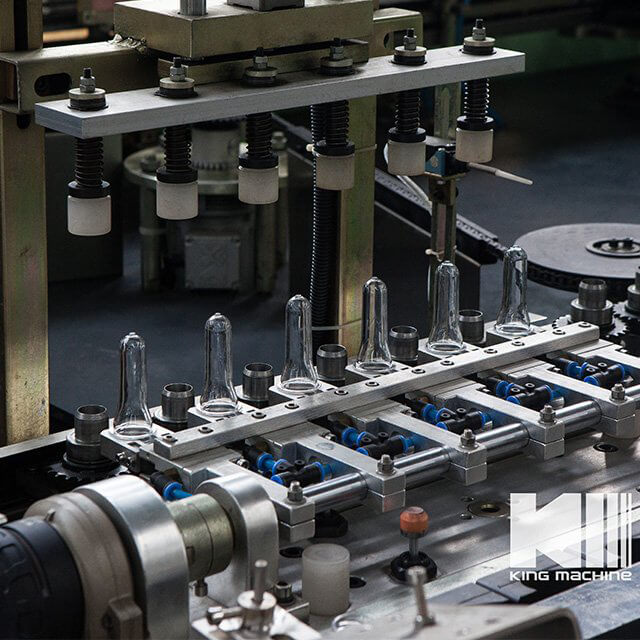

6. Transfer arm
6.1 Preform transfer arm is driven by cylinder to turn oven and down the preforms and bottles with the features of good synchronism
Specification
COMPONENT | ITEM | DATA |
Container condition | Cav.No | 6 |
Max. Volume | 750mL | |
Max. container diameter | Φ50mm~Φ70mm | |
Neck Diameter Range | Φ30mm~ Φ40mm | |
Max. preform height | <140mm | |
Container Interval | 76.2mm | |
Output of 500ML(B/H) | 5500-6000 | |
Electrical system | Voltage | 220/380V |
Frequency | 50/60Hz | |
Service power | 30-40kw/h | |
Total power | 65kw | |
Air system | Operating air pressure | 8~10bar |
Low pressure air consumption | 2.0~3.0m3/min | |
Blowing air pressure | 26~35bar | |
High pressure air consumption | 3-4m3/min | |
Cooling water (temp.≤18℃) | Pressure | 2bar |
Water flow | 2m3/h | |
Weight | Total | 5.5T |
Machine size | Main machine(L×W×H) | 4750mm×2050mm×2100mm |
Preform Loader(L×W×H) | 2550mm×1527mm×2600mm | |
Layout(L×W×H) | 6500mm×5000mm×2600mm |
Note:1. Due to the constant R&D requirement, the above parameter listed is only for reference.
2. If customer has special requirement upon the components differ from the above list, we have the right to quote again.
Q:How about the spare parts?
A:We will send one year enough easy broken spare parts together with the machines,shipping together. During the warranty time,we will supply the spare parts with our cost including the delivery fees.
Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
Q:How to install my machines when it arrives?how much the cost?
A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines. Customer pay air tickets go and back,accommodation and USD80/day/person.
Q:When can I get my machine after I paid?
A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.
Q:What’s your guarantee or the warranty of the quality if we buy your A1:machines?
A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q:Are you a trading company or a manufacturer?
A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in reasonable price, Welcome to visit us.
